Flavio Castro: Planalto House

A domestic architecture in a suburb of São Paulo, Brazil, creates an intersection between private and public spaces and activities.

The Planalto Paulista neighbourhood lies south of the centre of São Paulo, Brazil’s economic capital, and is where all its social contradictions intersect and, quite reluctantly, coexist. Flanking Avenida Indianopólis, the link between Congonhas Airport and the city centre that skirts Ibirapuera Park, this zone is the Brazilian middle-class dream. Constructed on a plateau approximately 800 metres above sea level in the 1950s, it is divided into square plots shaded by wide tree-lined avenues.

This is the suburb where Flavio Castro built a house for a family of four (a couple with two children) on a rectangular 800-square-metre site, accepting the far from easy challenge of creating a sequence of spaces and functions that could accommodate the private and social life of a family unit that enjoys meeting and interacting with others. In so doing, Castro also incorporated another contradiction of Brazilian society – the great sense of insecurity felt constantly by the people of this metropolis. As a result, and as often seen in Brazil, the Planalto House is closed off from the surrounding neighbourhood by a high wall and screens its living space in an L shape, with rooms that seem hybrid and not entirely domestic.

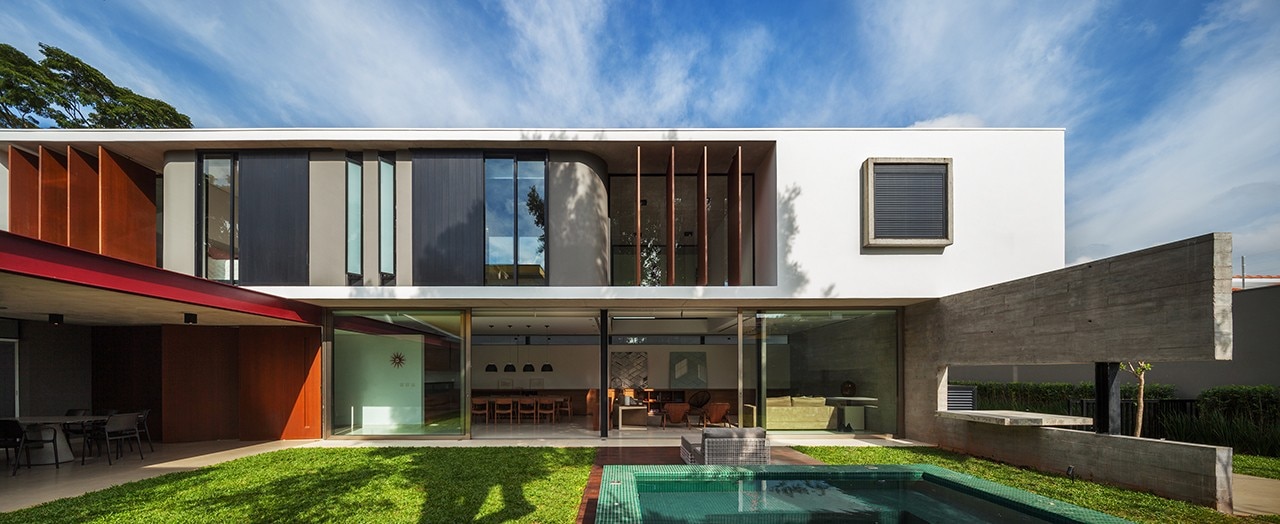

This project treads the fine line between the concepts of social and private, and interprets the available terrain as if it were an integral part of the building. The architecture draws no precise boundaries between interior and exterior, a principle respected by Castro in every detail: most of the windows run from floor to ceiling; the bedrooms in the sleeping zone are screened by large wooden panels, hinged in the middle to permit a glimpse of the city in the distance; the ground-floor living room overlooks the garden through four sliding windows; and the kitchen, with no doors/windows, is entirely open on the exterior, turning the garden into another room of the house.

The catalyst for the design was the superimposition of two perpendicular volumes, two entities that Castro has interpreted as autonomous – the living spaces are on the ground floor while the more private and reserved sleeping ones are lined up on the first floor.

The fact that they are two independent entities is underscored by a red-painted metal beam running the length of the slab of the block set parallel to the street. On both inside and out, this clearly marks the separation between the two prisms or, as the architects say, “the sense of autonomy between the two volumes.”

This feature also highlights the function of the building’s load-bearing structure: a mixed system of metal beams and columns, and 20 cm-thick reinforced concrete slabs. The selected materials – concrete, glass, steel and wood – are tasked with underlining the colour combinations, the surface textures, the opacity and the transparency. They remain themselves, with no surface finishes.

Born in São Paulo in 1983 and of Italian-Brazilian nationality, Flavio Castro graduated from FAU/Mack in his home city in 2005 and then specialised at UPC in Barcelona in 2009 while working for several architectural offices – MAB arquitectos, Arteks Arquitectura, Hidalgo & Hartmann and MMBB – before opening his own São Paulo practice in 2006.

Planalto House, São Paulo, Brazil
Architect, construction supervision, landscape design:
Flavio Castro
Design team: Jennifer Andrade and Claudia Reis
Structural and plant engineering: Edatec
Client: Marcos and Eliana Stuart
Built area: 800 square metres (gross)
Design phase: 2012
Construction phase: 2012 – 2013

The front facing the street

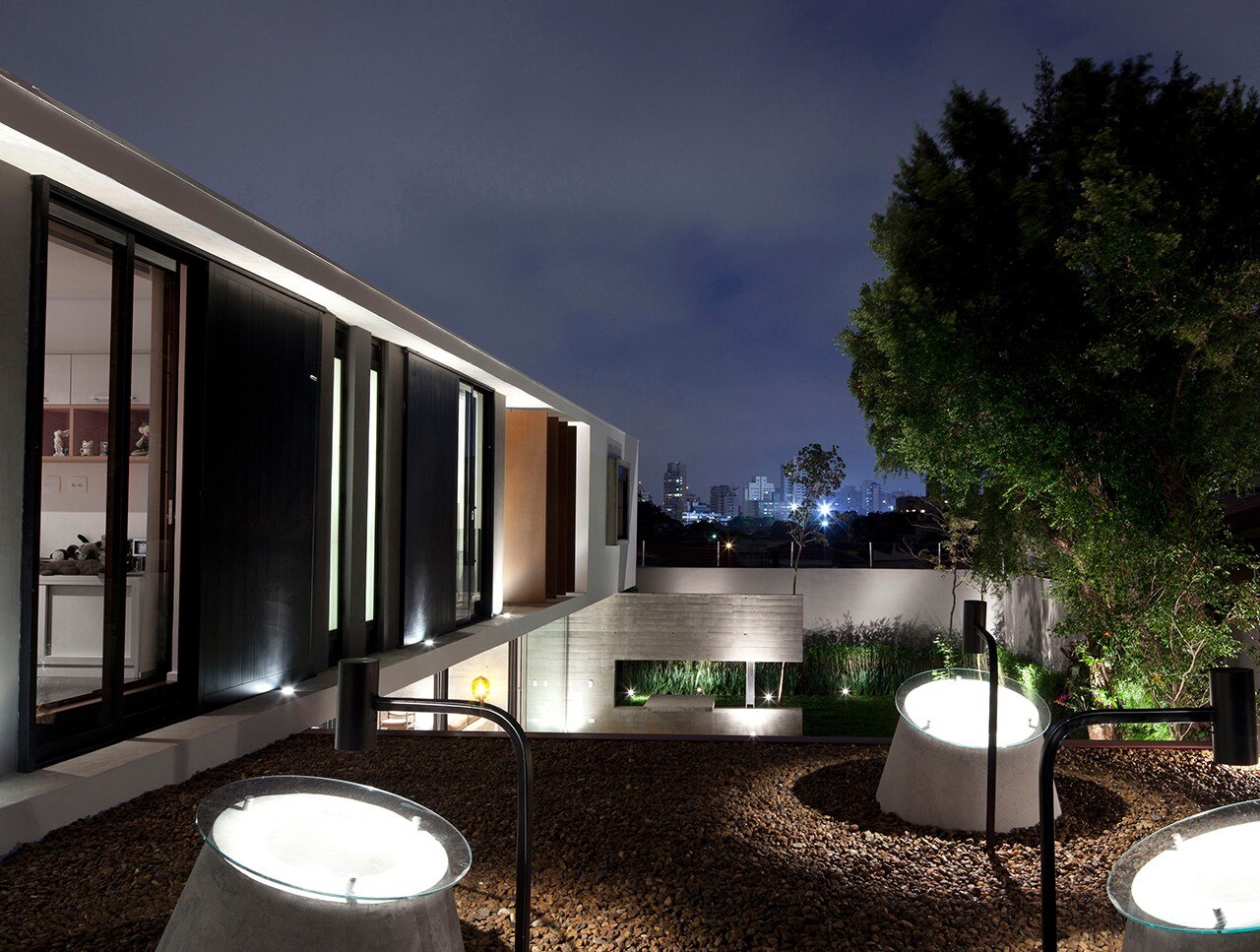

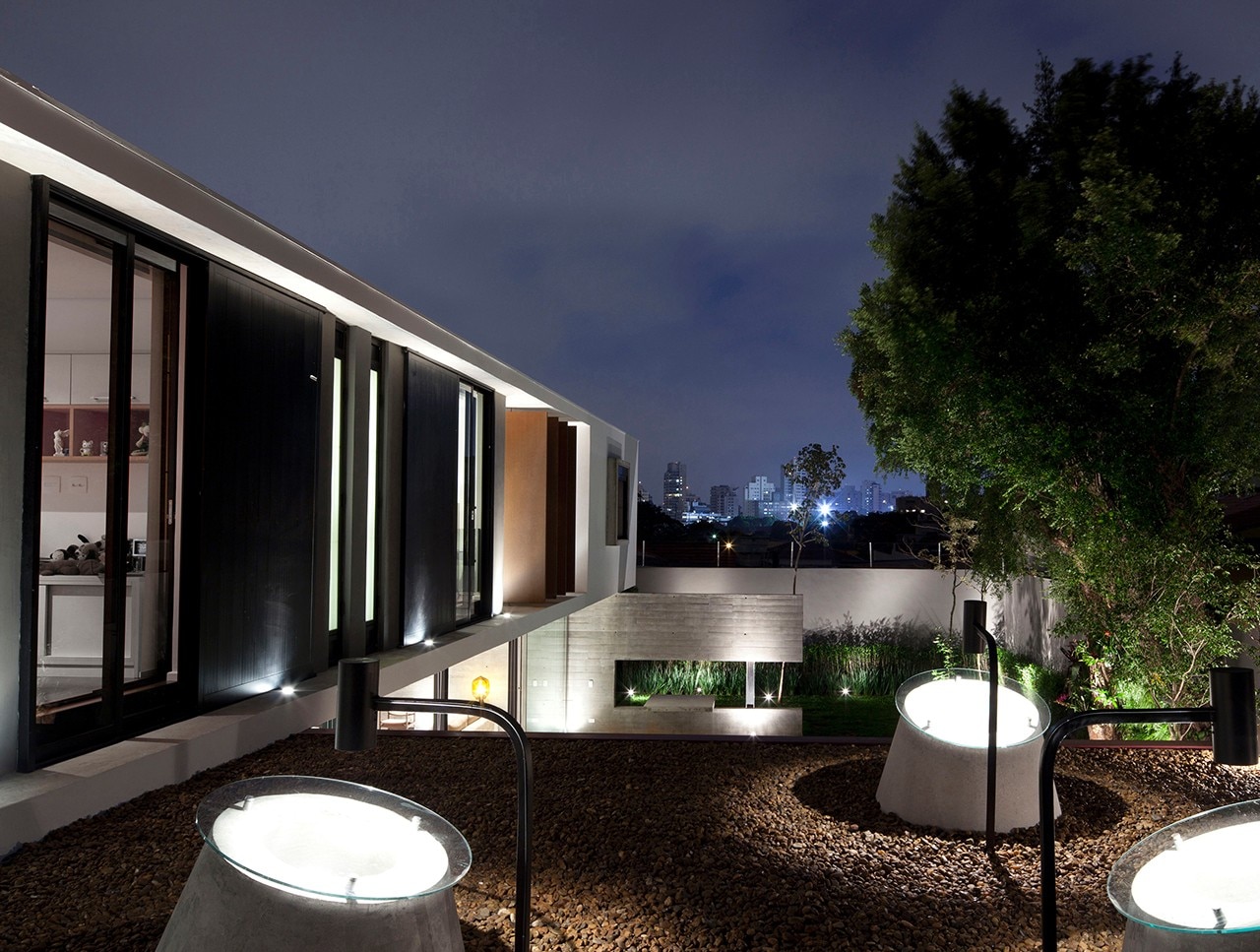

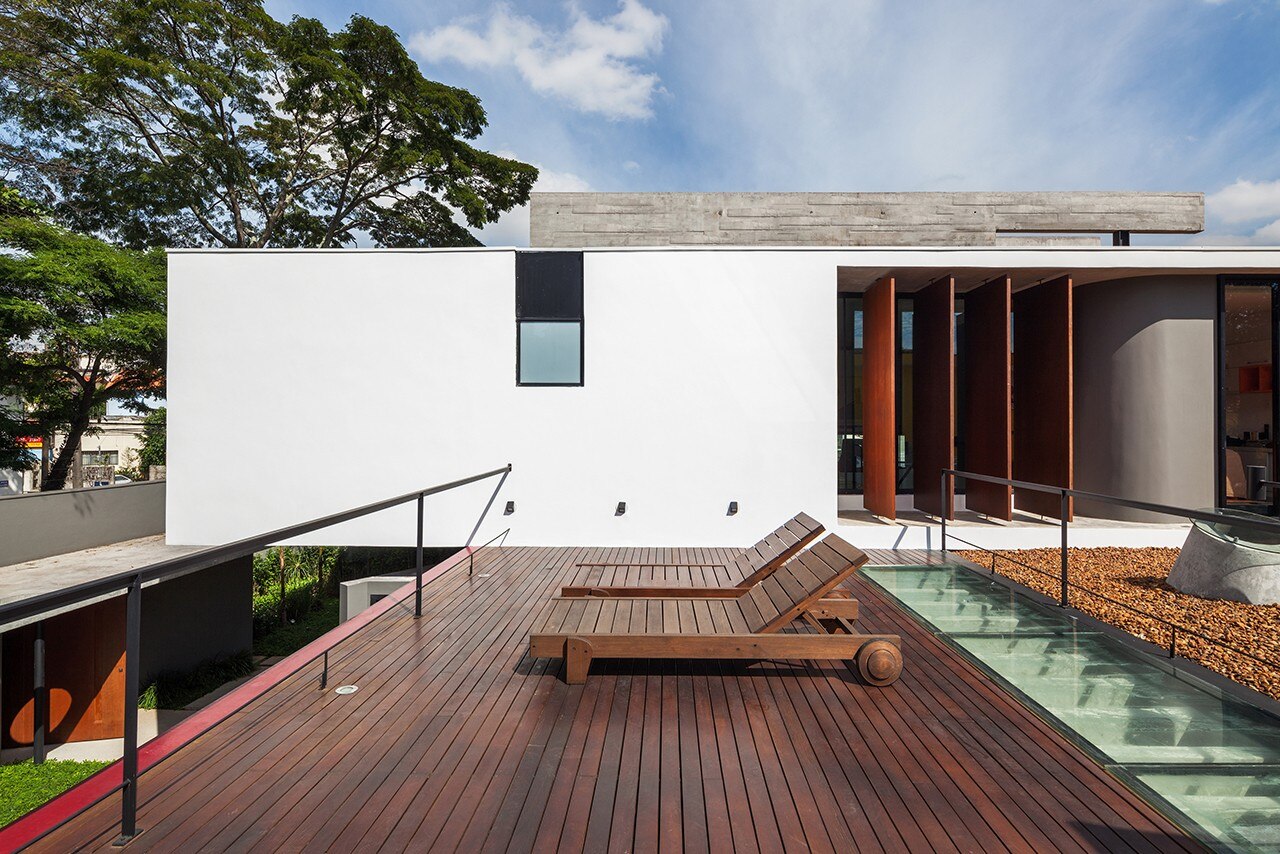

The terrace above the volume containing the kitchen

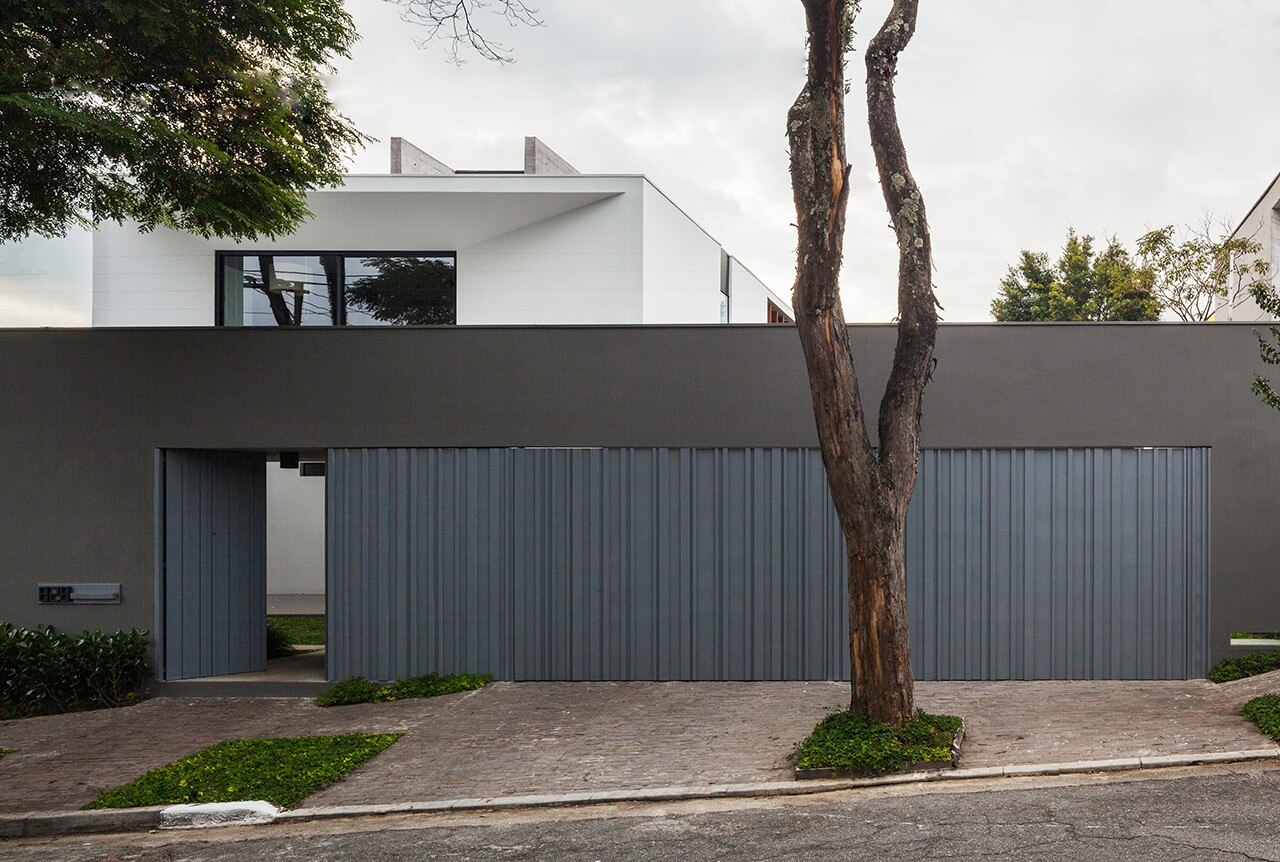

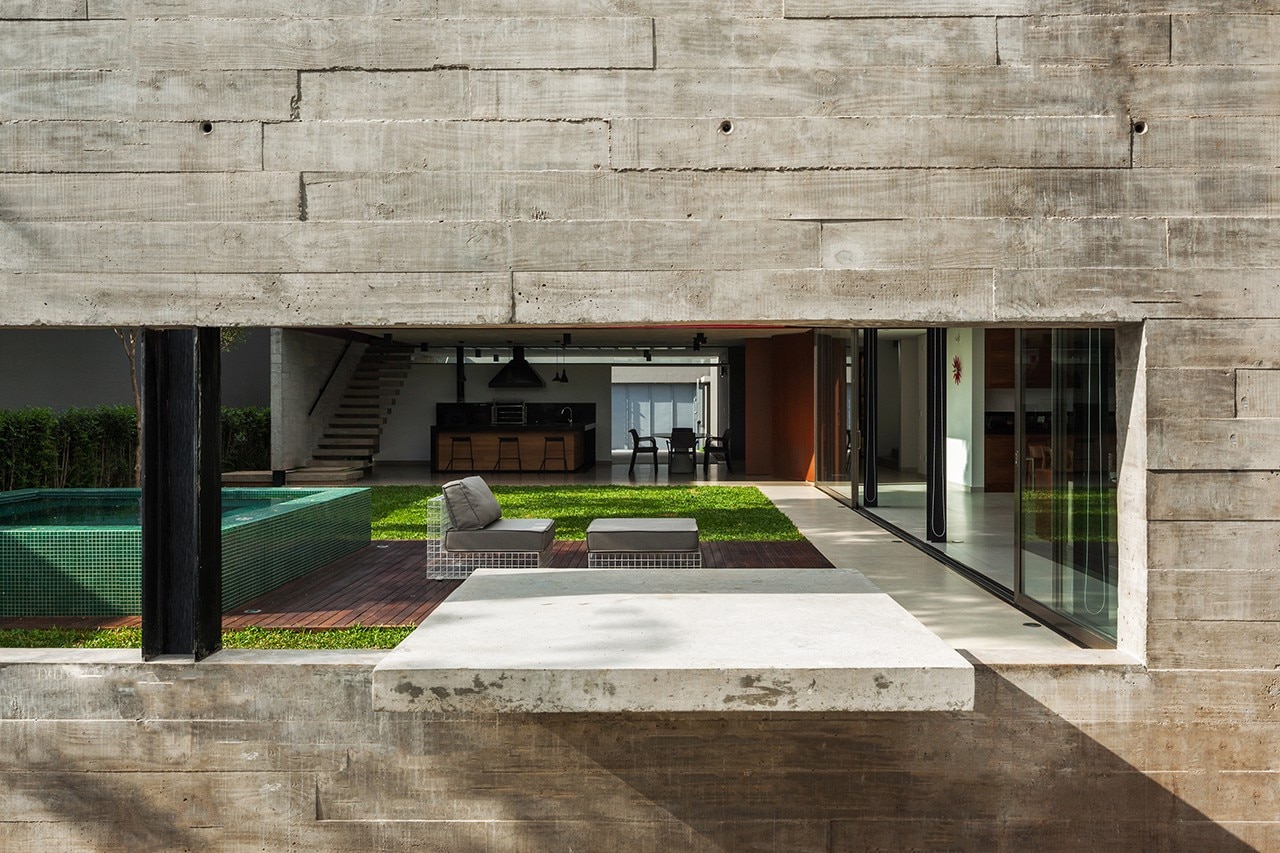

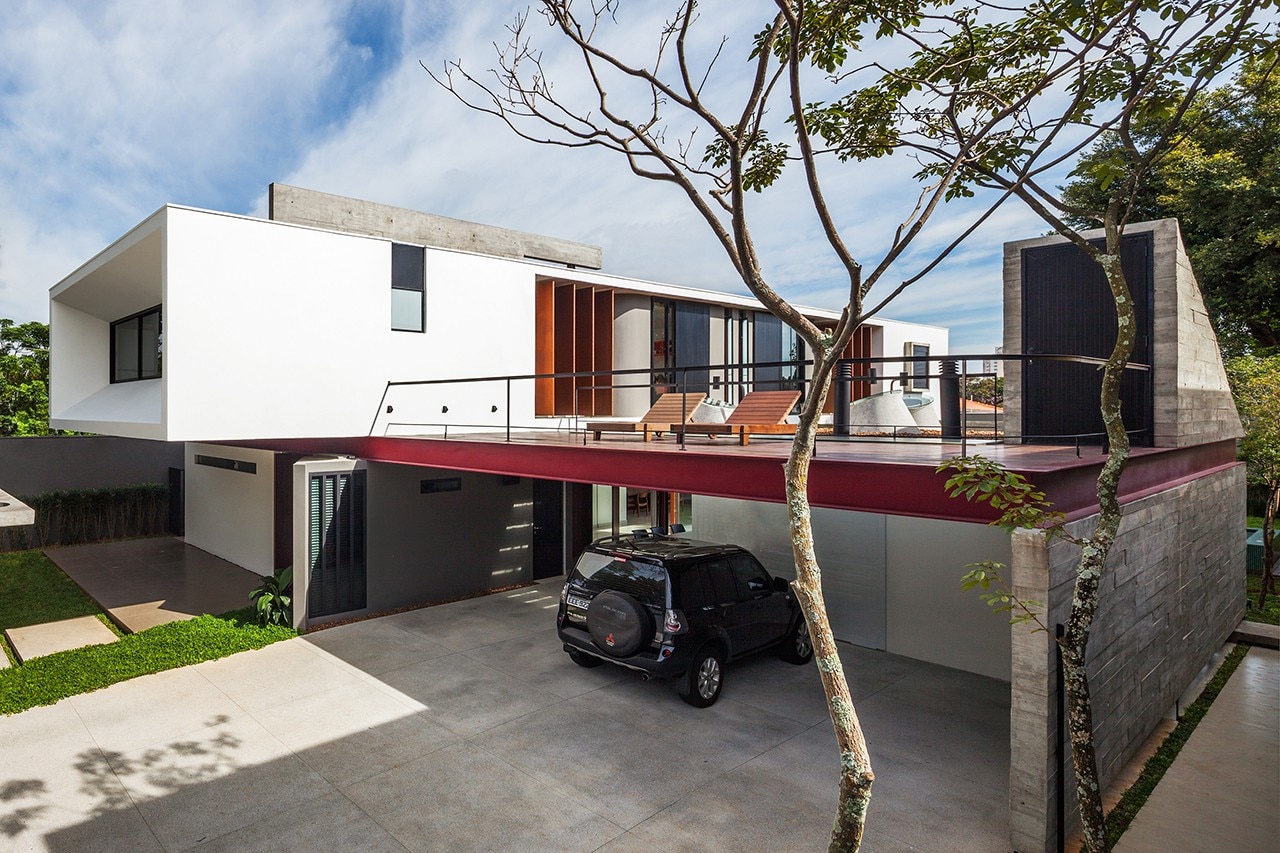

The house seen from the street

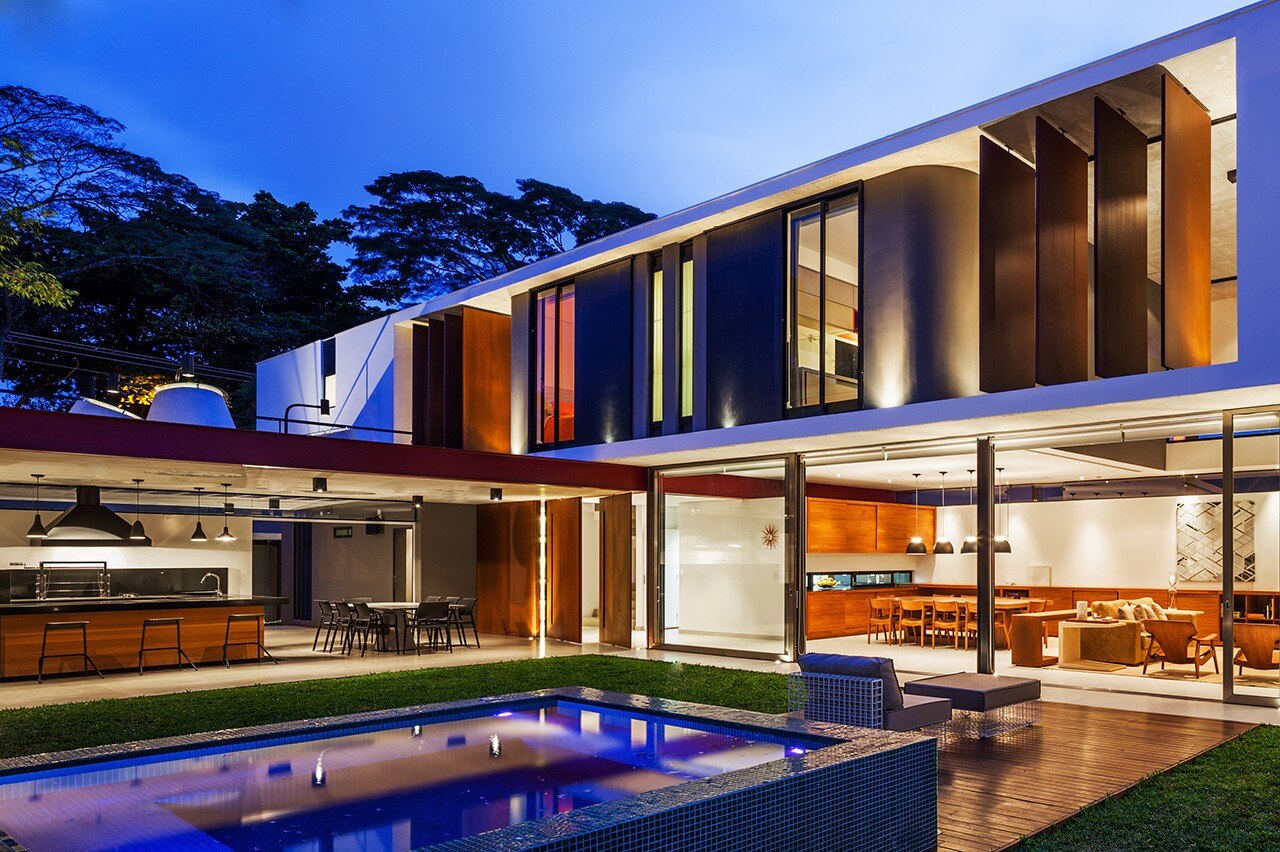

Nocturnal view of the Planalto House

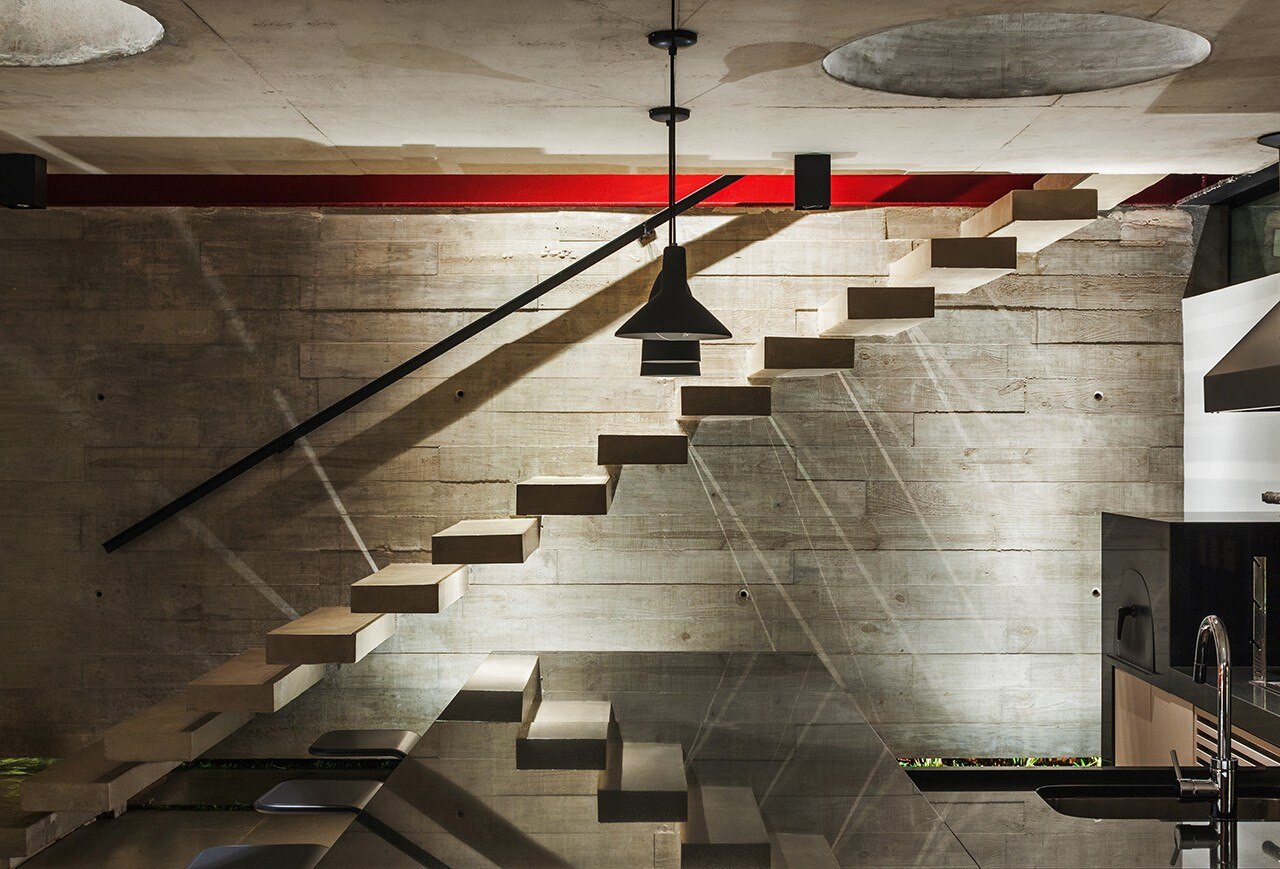

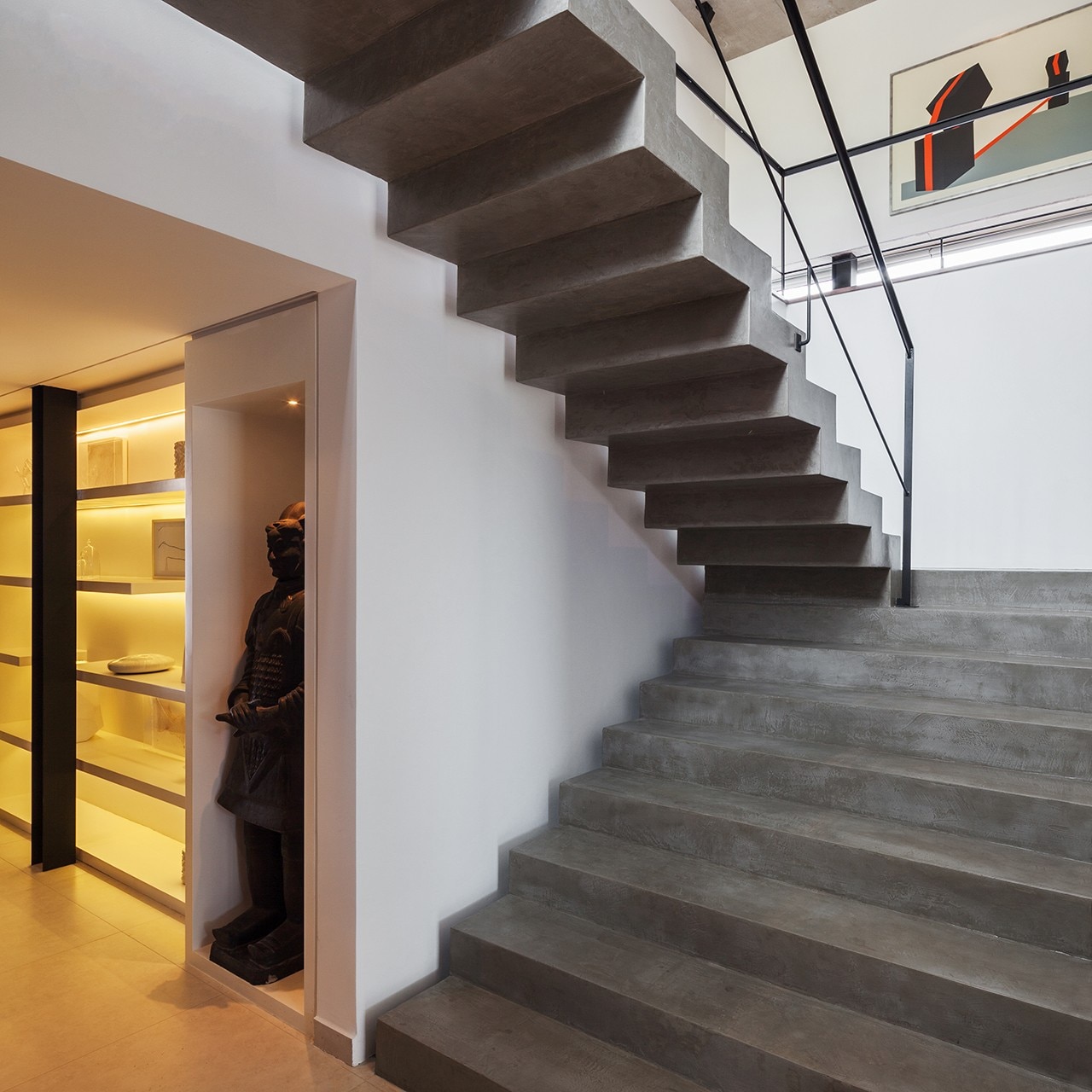

The staircase from the kitchen to the terrace

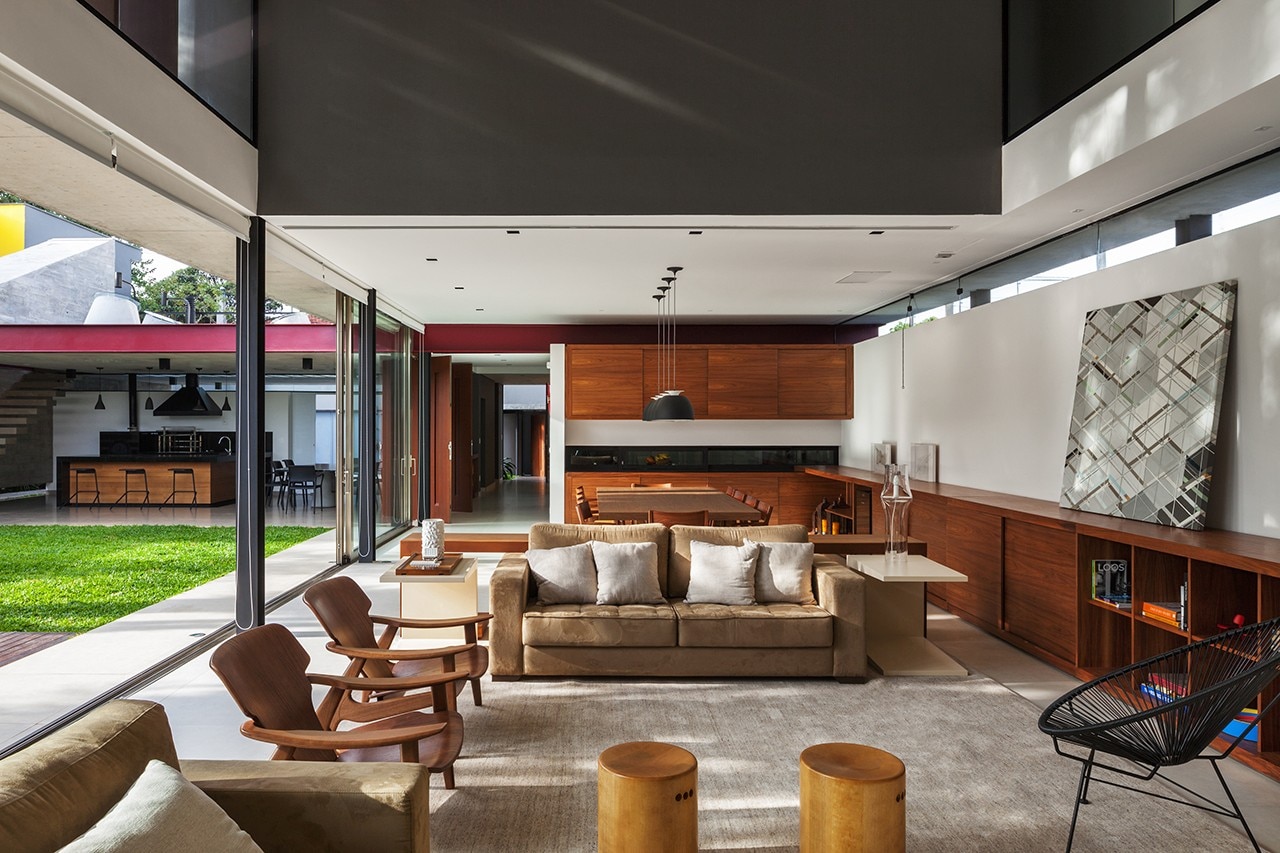

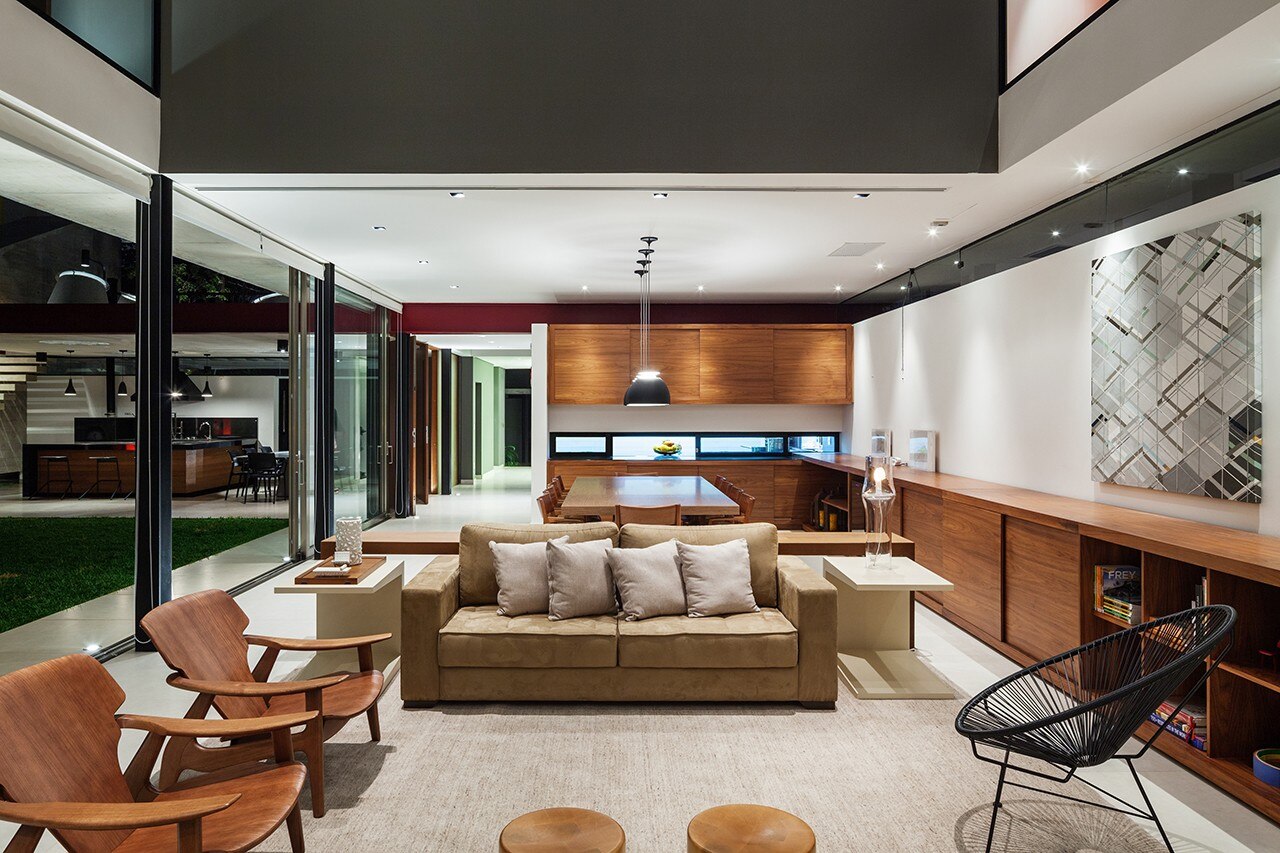

The living room by night

Z:\ARQUIVOS\FILES1\FTP\09_Casa Planalto\english\drawings\plto_english _site plan 1 500 (1)

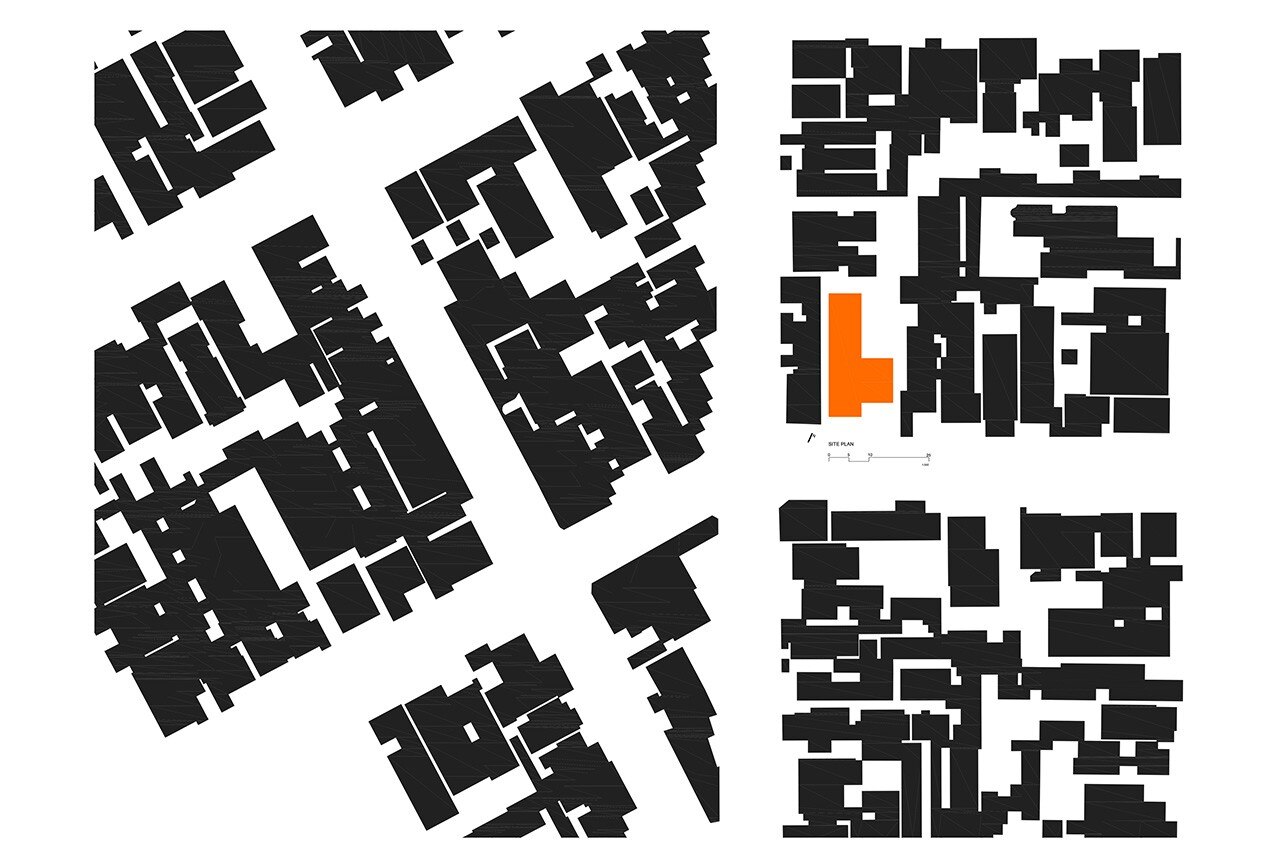

Site plan

plto_esquema_conceitual_2

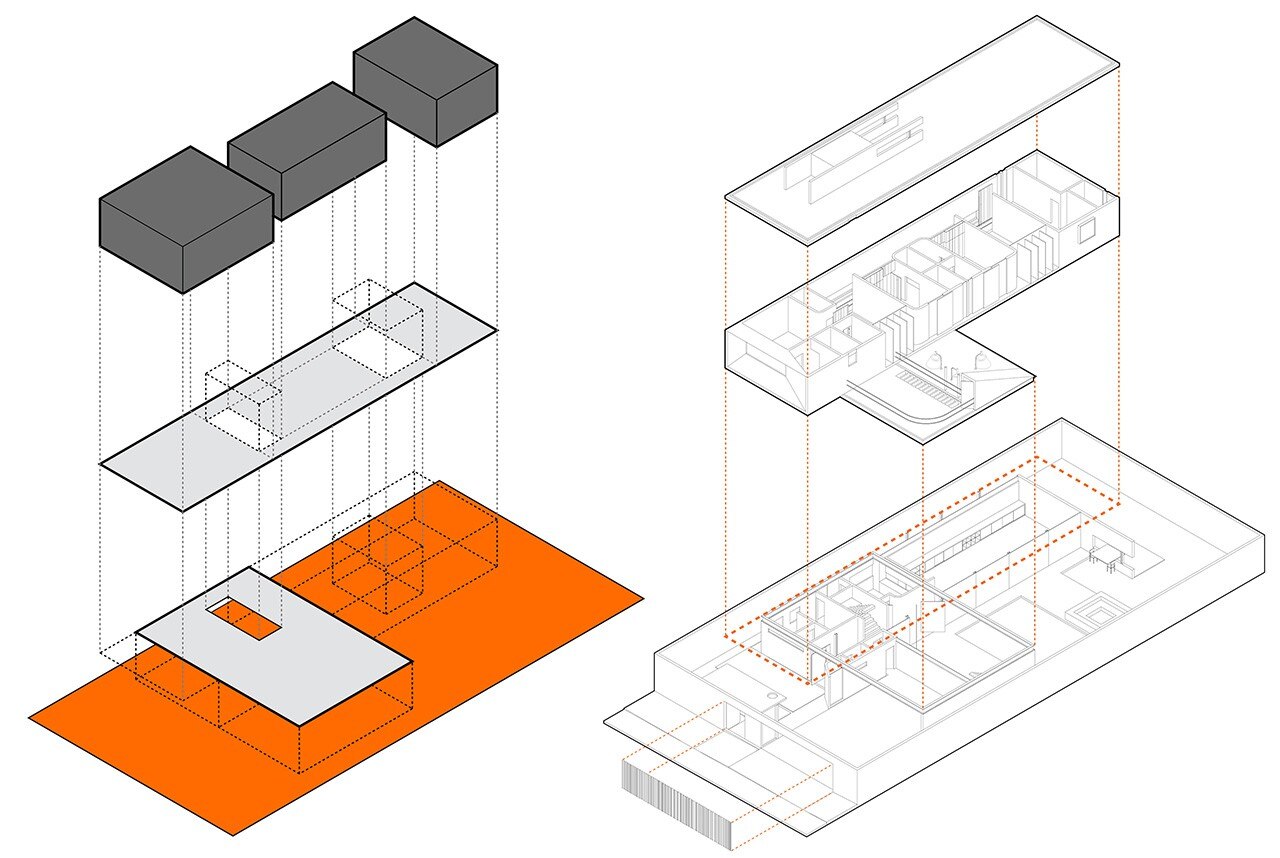

Axonometry

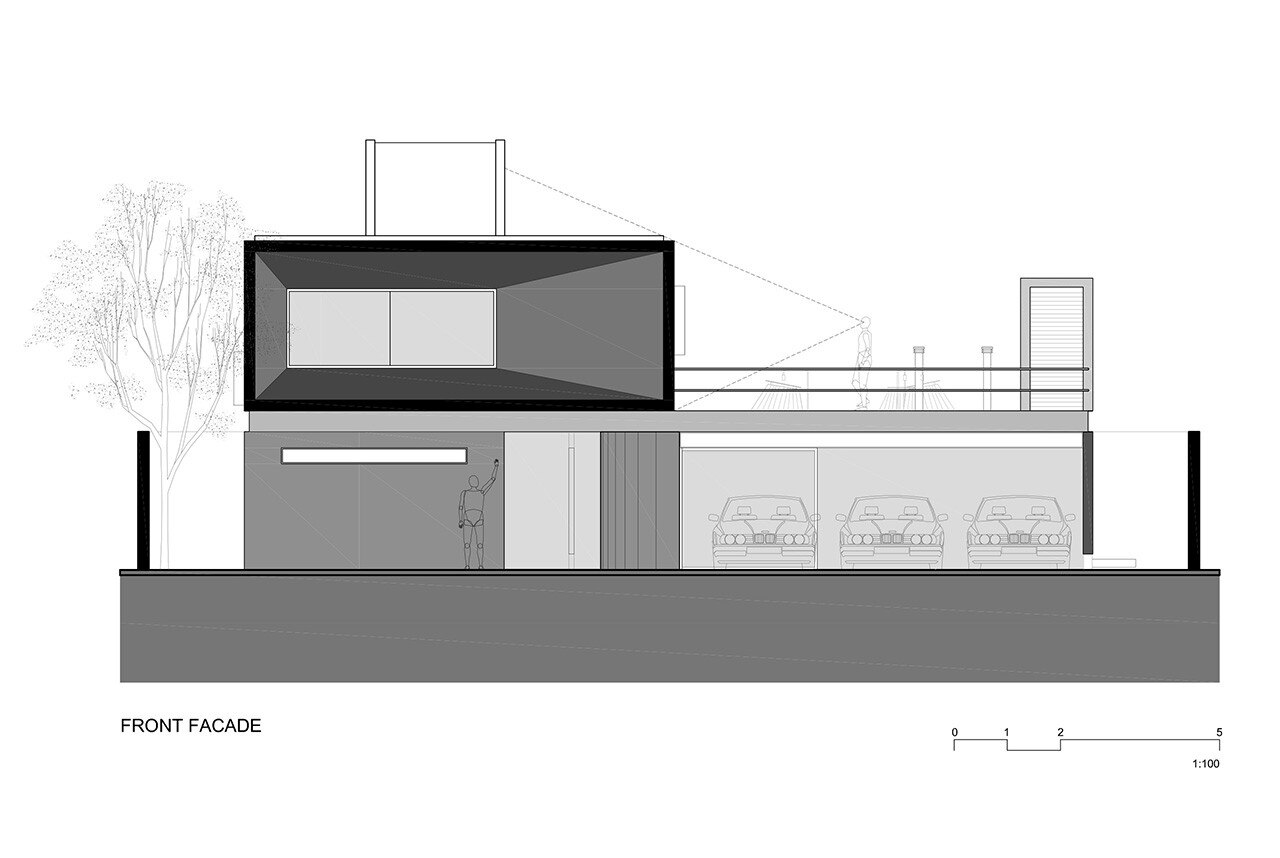

Z:\ARQUIVOS\FILES1\FTP\09_Casa Planalto\english\drawings\plto_english _front facade (1)

The front facing the street

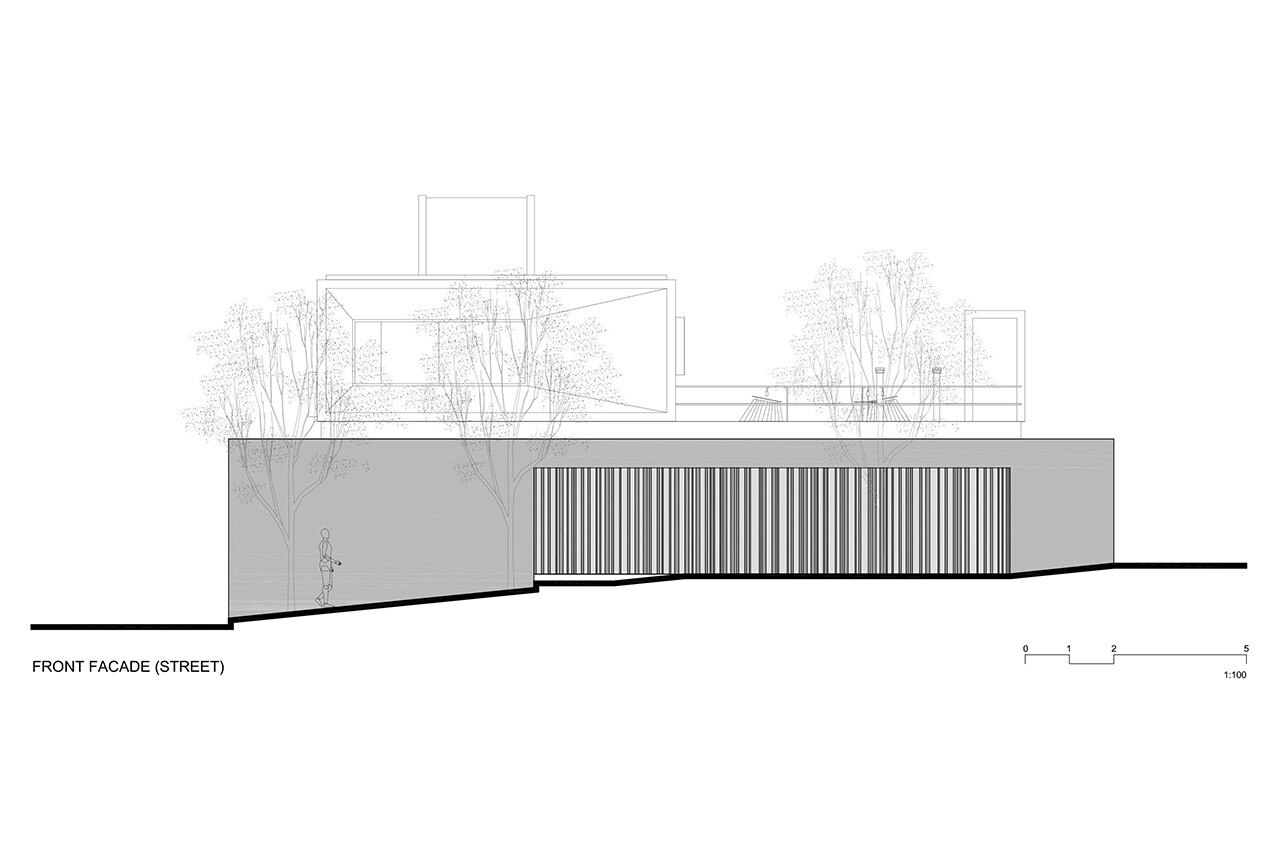

Z:\ARQUIVOS\FILES1\FTP\09_Casa Planalto\english\drawings\plto_english _front facade_street (1)

The front facing the street and the gateway

Z:\ARQUIVOS\FILES1\FTP\09_Casa Planalto\english\drawings\plto_english _plans (1)

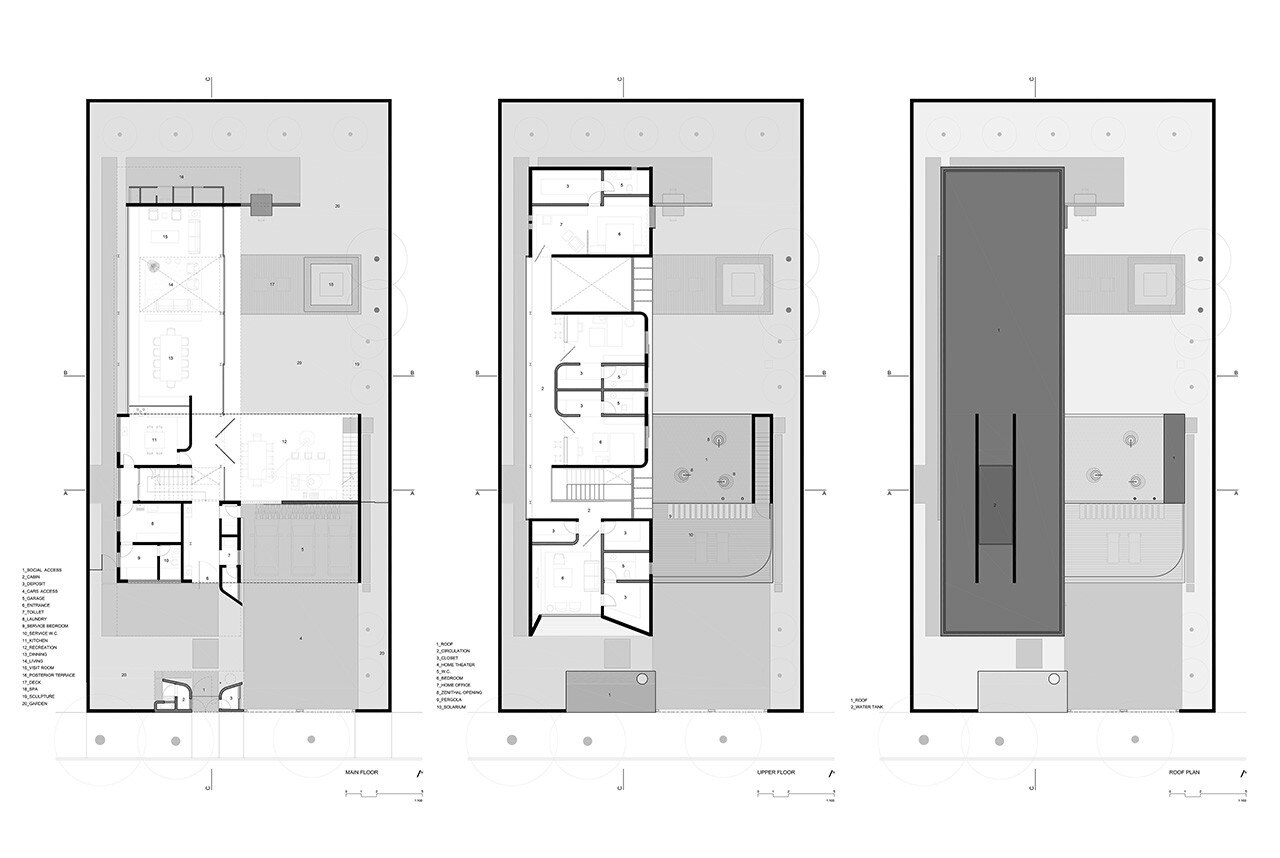

From left: plans of the ground floor, first floor and roof

Z:\ARQUIVOS\FILES1\FTP\09_Casa Planalto\english\drawings\plto_english _right side (1)

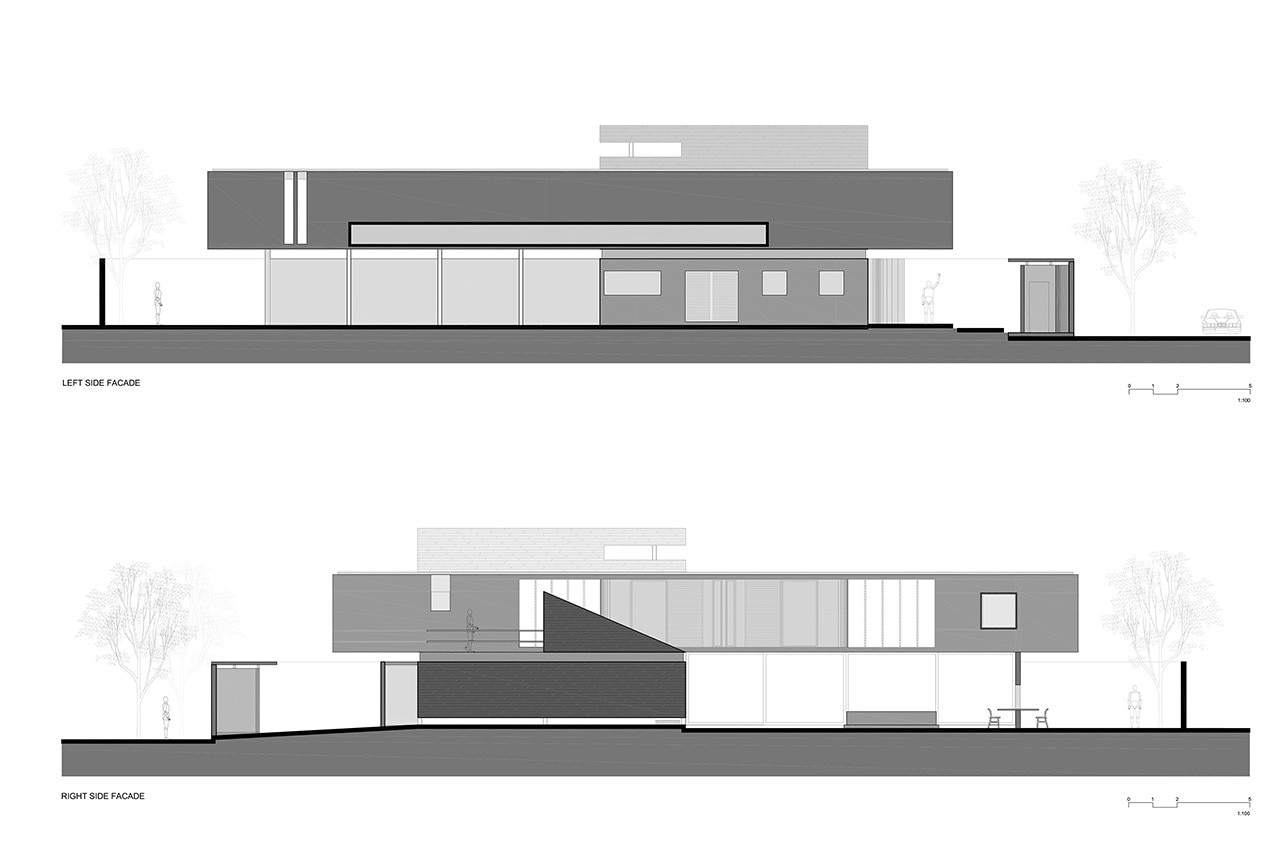

Side elevations

Z:\ARQUIVOS\FILES1\FTP\09_Casa Planalto\english\drawings\plto_english _section bb (1)

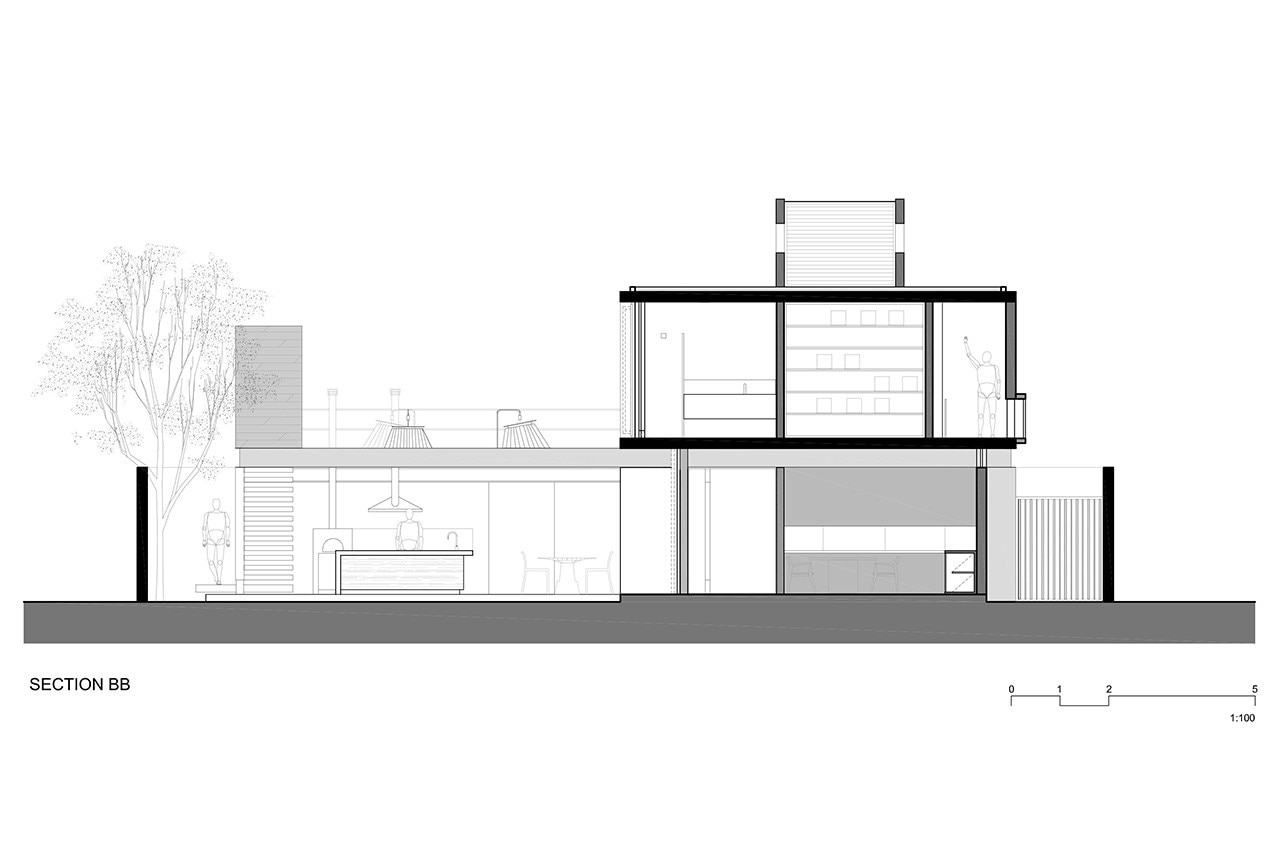

Section
