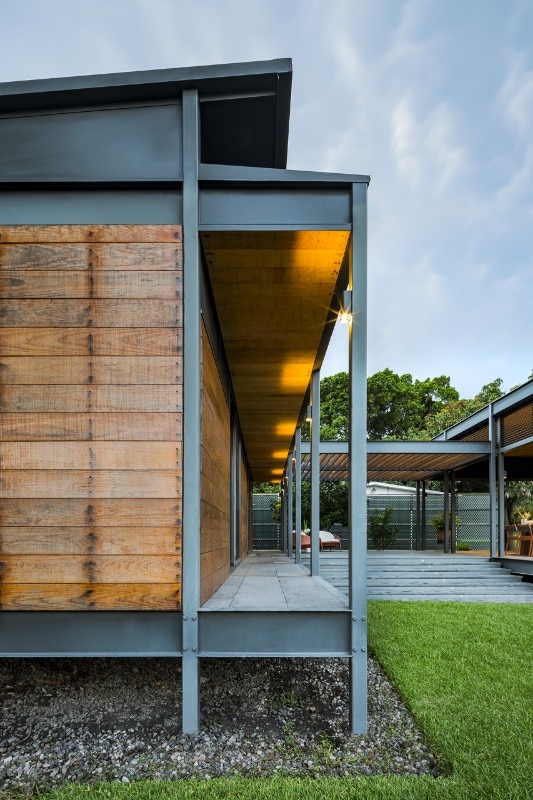

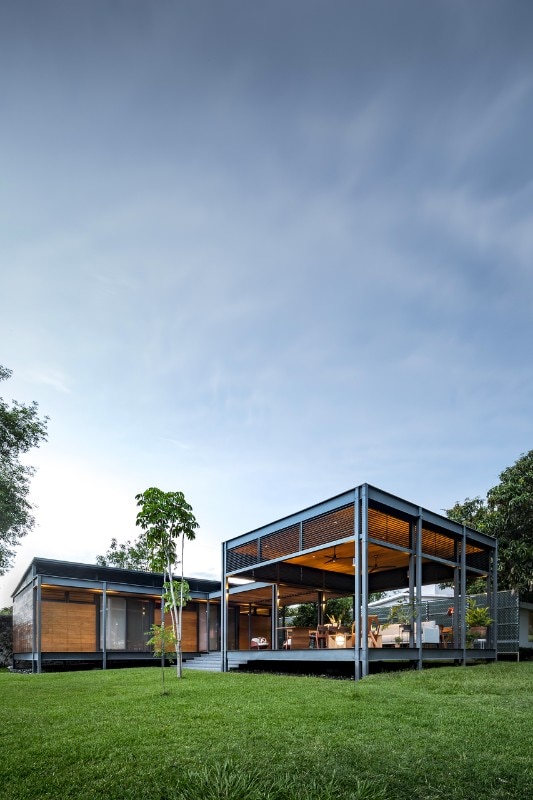

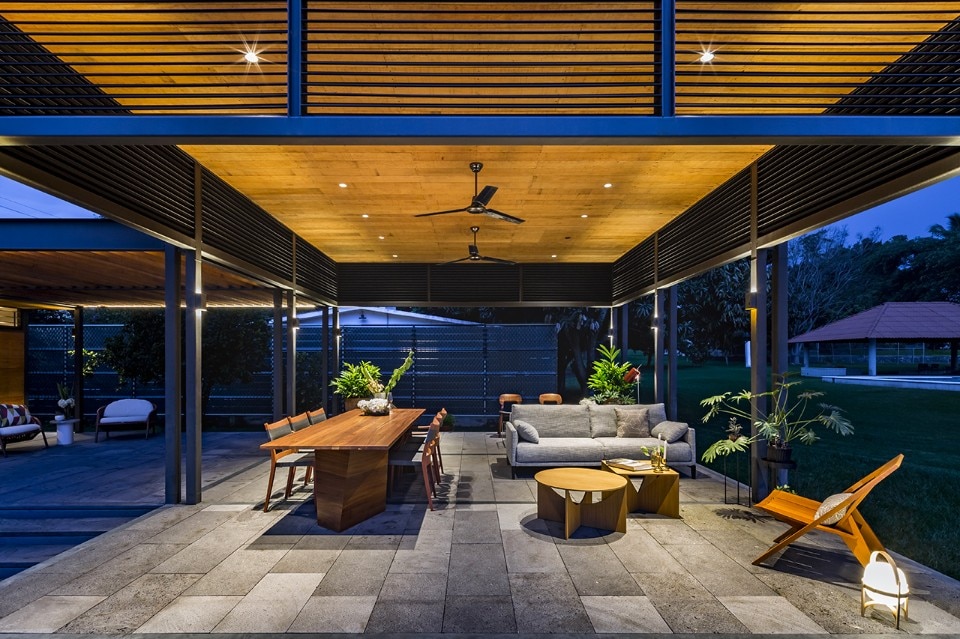

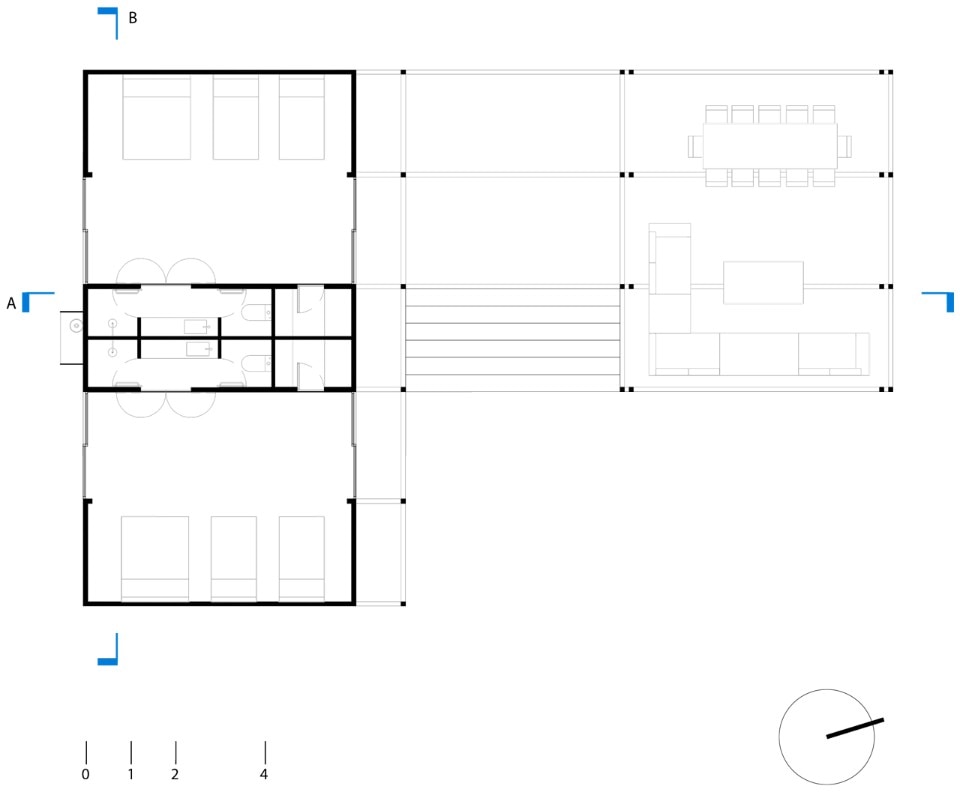

Soler Orozco Arquitectos (SOA) has completed a vacation house in Morelos, México. Given the client’s need to reduce on-site construction time to a minimum, Mexican architects proposed a prefabricated structure. The program called for two bedrooms with two full bathrooms and a common terrace. An important design constraint was the dimension of prefab elements, which would have to be transported by road. SOA planned modules measuring up to 7.2 meters by 2.4 meters, the standard size of a freight truck platform, which also optimized the use of metal sections for the structure and frame.

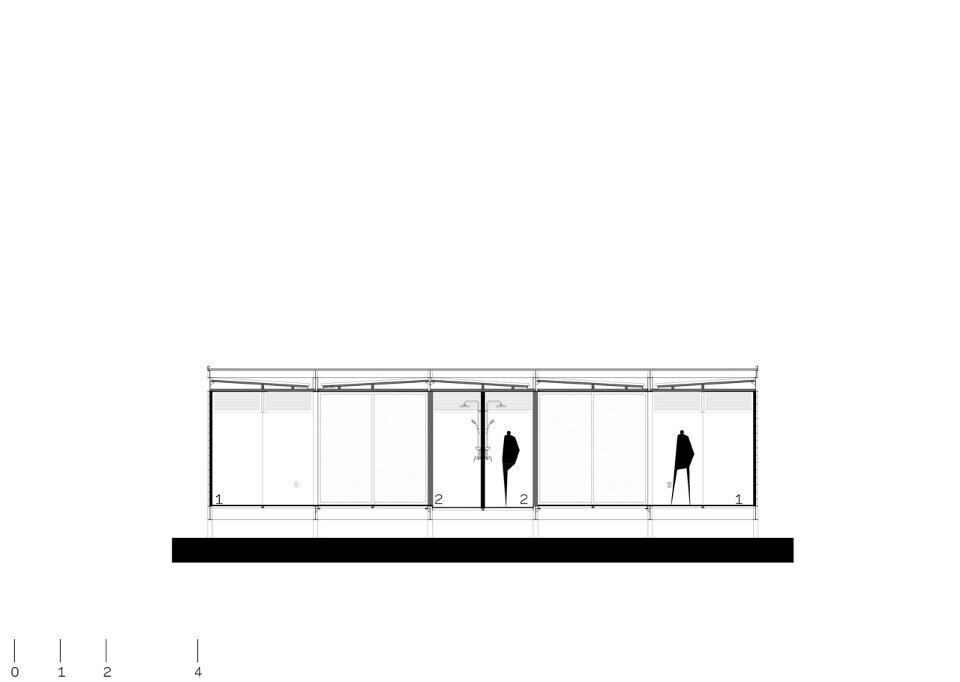

/Volumes/Taller SLR/02 Proy Supervisión/1404 Casa Molina/03 Proyecto/03 Anteproyecto/Xref/1404 - cortes publicacion.dwg
The entire structure was put together in the workshop, with light roofing, some plumbing, electrical installations, as well as preliminary floor, wall, and ceiling finishes in the bathroom areas. On site, the foundations had been laid and prepared to receive the structure. Once there, the modules were assembled, doors and windows put in place, exterior stone was applied, and bathroom fixtures, lighting, and accessories installed, before the final details and finishes were attended to.
- Project:
- Casa Molina
- Location:
- Morelos, Mexico
- Program:
- vacation house
- Architect:
- SOA Soler Orozco Arquitectos – Juan Soler, Alan Orozco
- Collaborators:
- Antonio Contreras, Santiago Párraga
- Structural engineering:
- Grupo SAI
- Structural engineering:
- M3 Ingenierías
- Site construction control:
- Juan Soler, Alan Orozco, Cesar Gutiérrez, Santiago Párraga
- Area:
- 160 sqm
- Completion:
- 2017
