Institute for Biotechnology

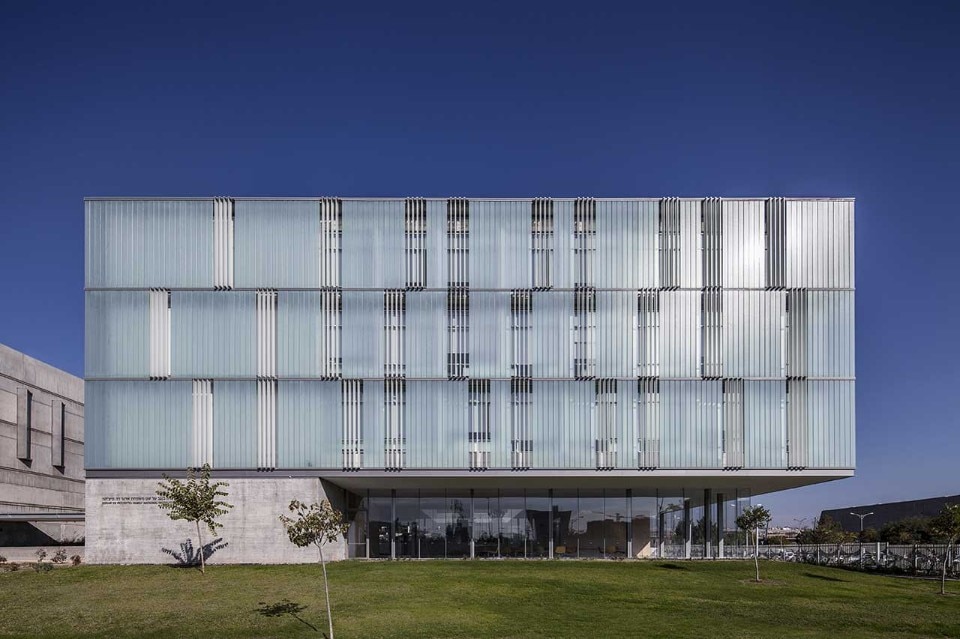

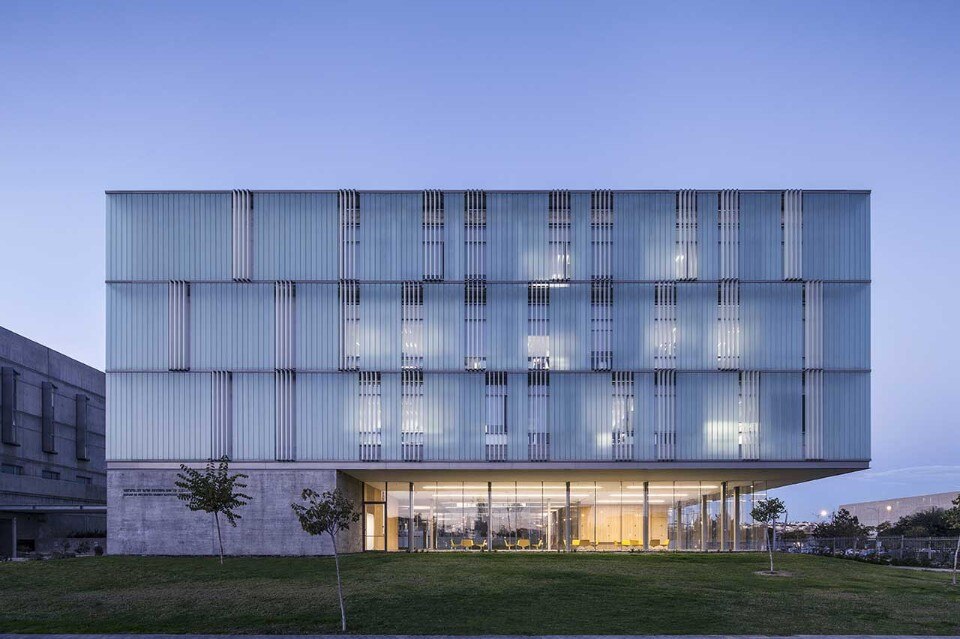

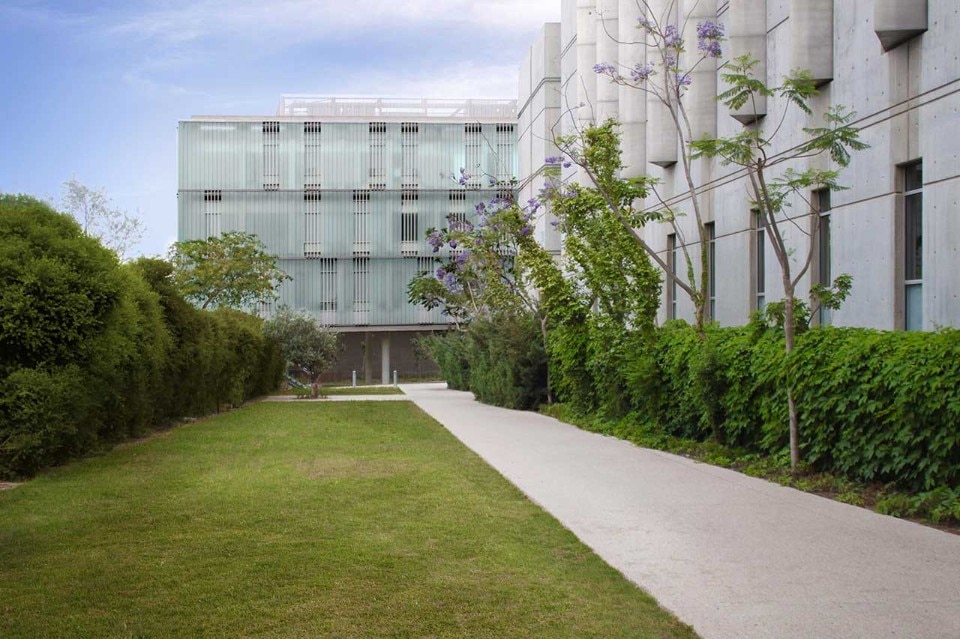

A double skin milky facade placed on a glass and concrete slab reflects the color of the sky and houses the laboratories of the National Institute for Biotechnology in the Negev of the Ben-Gurion University campus, Israel.

 Chyutin Architects, National Institute for Biotechnology in the Negev, Ben-Gurion University, Be’er Sheva, Israel

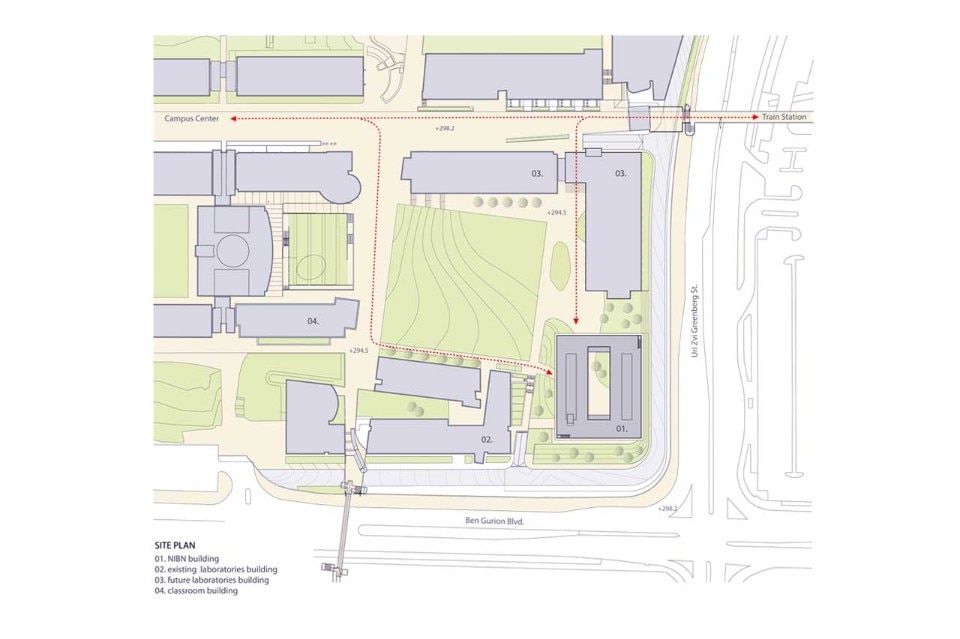

The building for the research laboratories of the National Institute for Biotechnology in the Negev (NIBN), is situated at the southwestern corner of the Ben-Gurion University campus.
The edifice is a part of the university’s laboratory buildings complex and is connected to it by a covered walkway.
 Chyutin Architects, National Institute for Biotechnology in the Negev, Ben-Gurion University, Be’er Sheva, Israel
Chyutin Architects, National Institute for Biotechnology in the Negev, Ben-Gurion University, Be’er Sheva, Israel

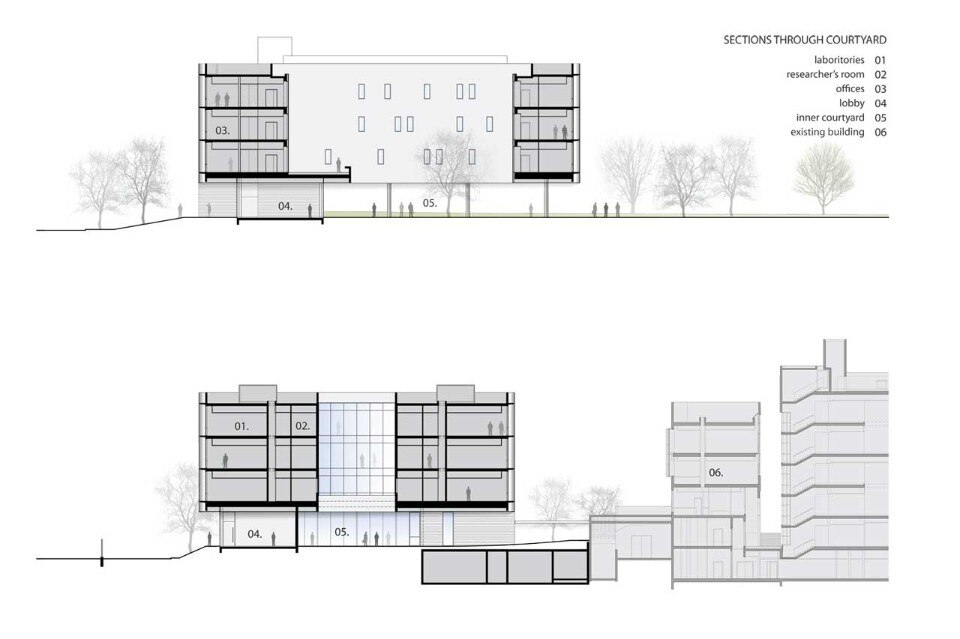

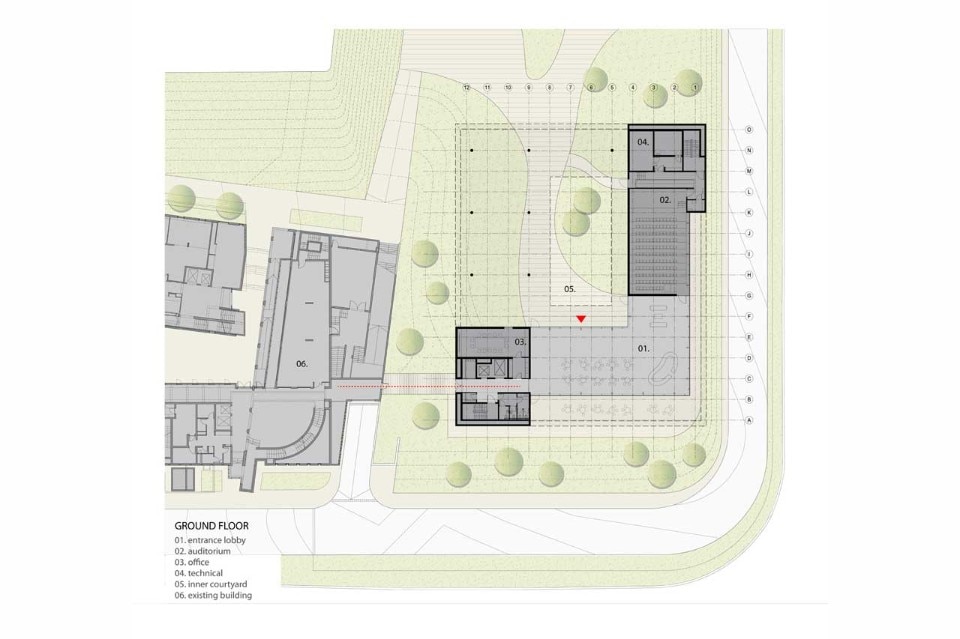

The NIBN building is comprised of four levels: three for laboratories and researchers’ offices, standing above a transparent ground floor for general public functions such as foyer, faculty lounge, auditorium, cafeteria, and seminar room. These latter operations allow for increased interaction between researchers, thereby enhancing the exchange of knowledge and strengthening academic ties across disciplines.

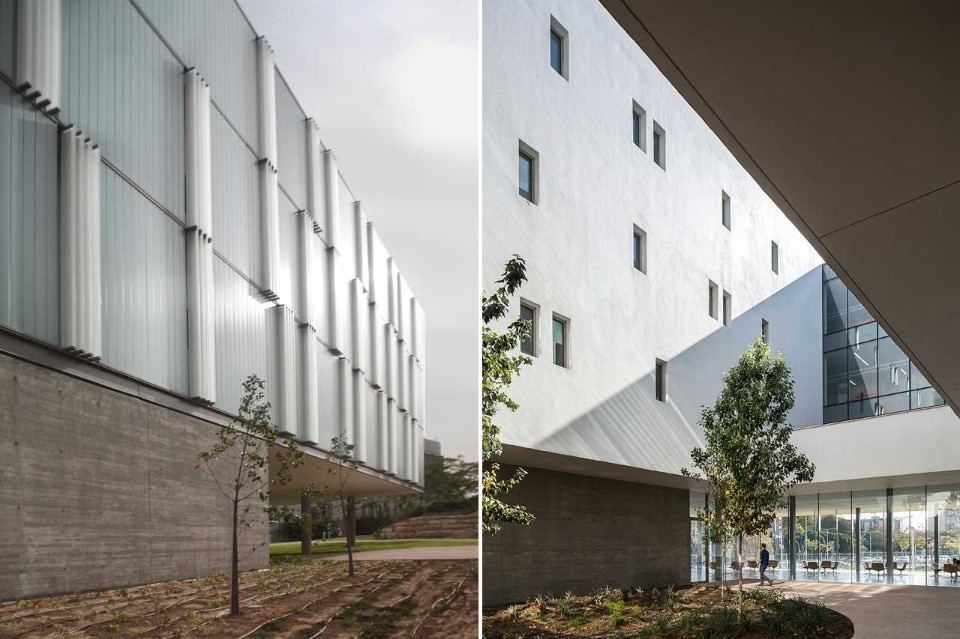

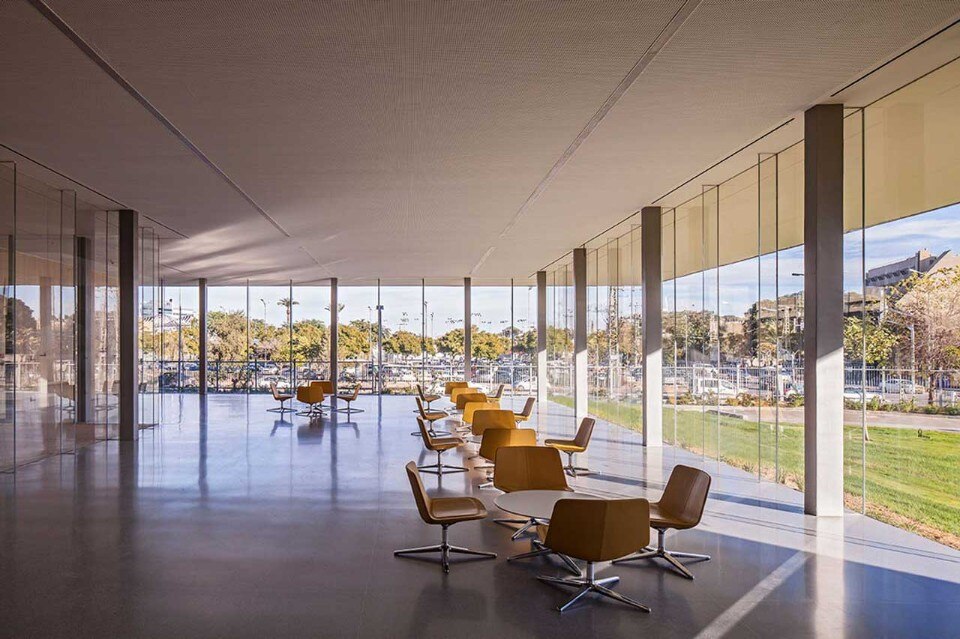

The ground floor’s envelope combines transparent glass facades and exposed concrete walls. The glass facades establish viewing relations between the surrounding urban environment and inner campus areas, dissolving the barrier between them.

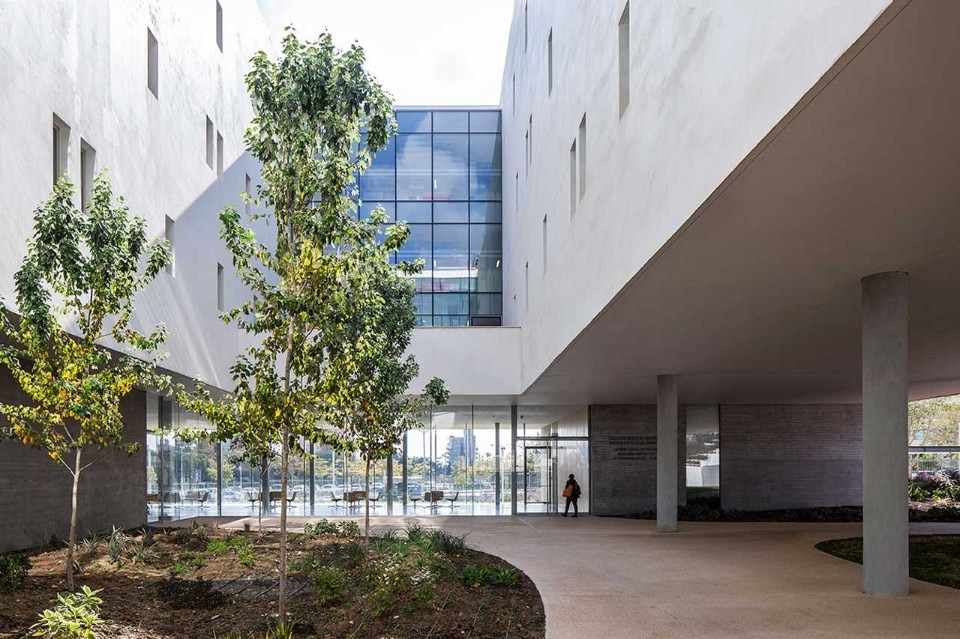

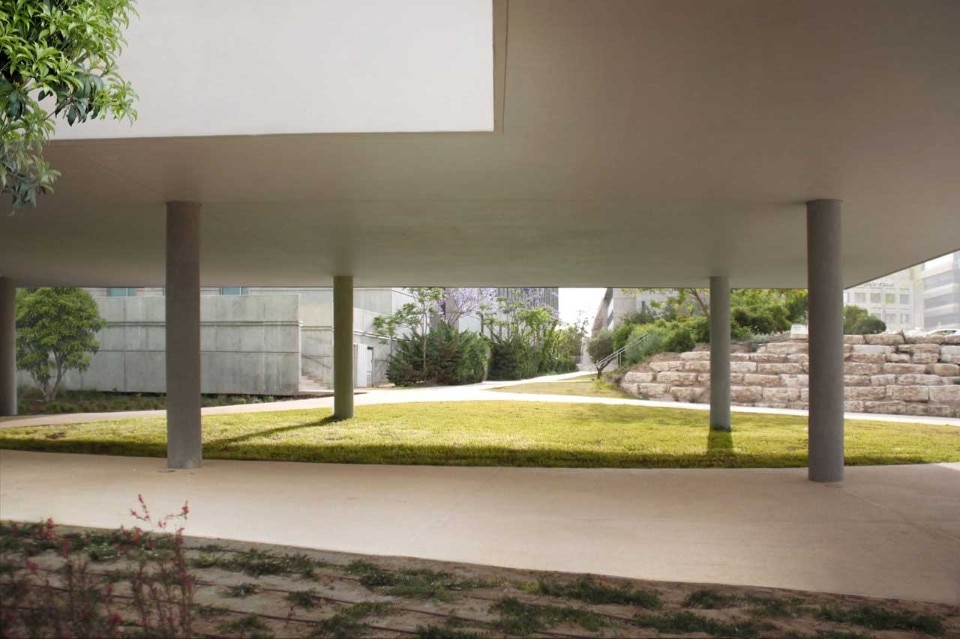

The exposed concrete walls form a stylistic and material continuation with the neighboring campus buildings. Adjacent to the foyer is a sizeable garden, partly covered by the upper laboratories floors, which creates an inviting and comfortable space for outdoor activities and bestows a sense of tranquility over the building as a whole.

 Chyutin Architects, National Institute for Biotechnology in the Negev, Ben-Gurion University, Be’er Sheva, Israel
Chyutin Architects, National Institute for Biotechnology in the Negev, Ben-Gurion University, Be’er Sheva, Israel

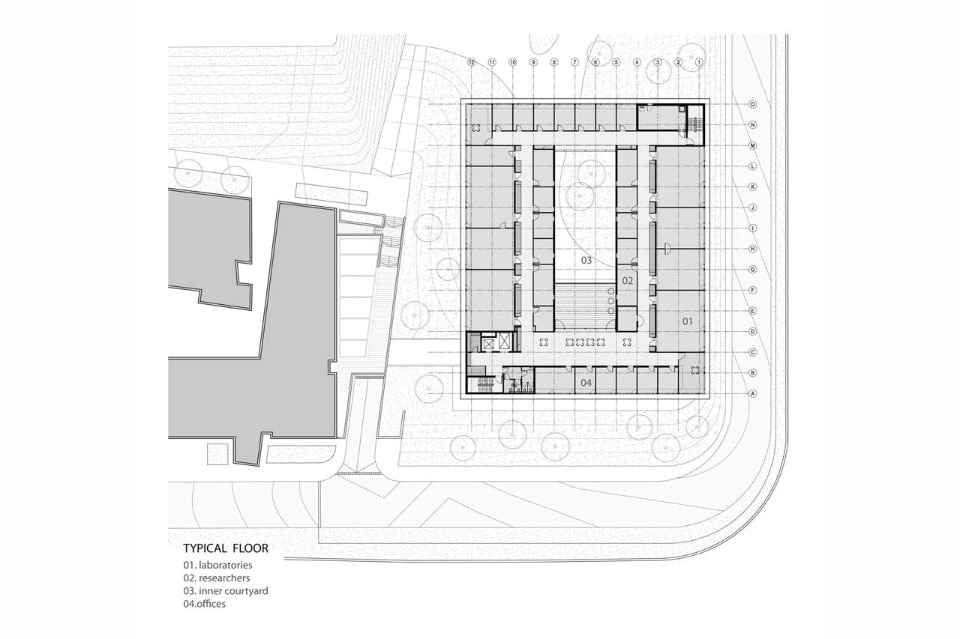

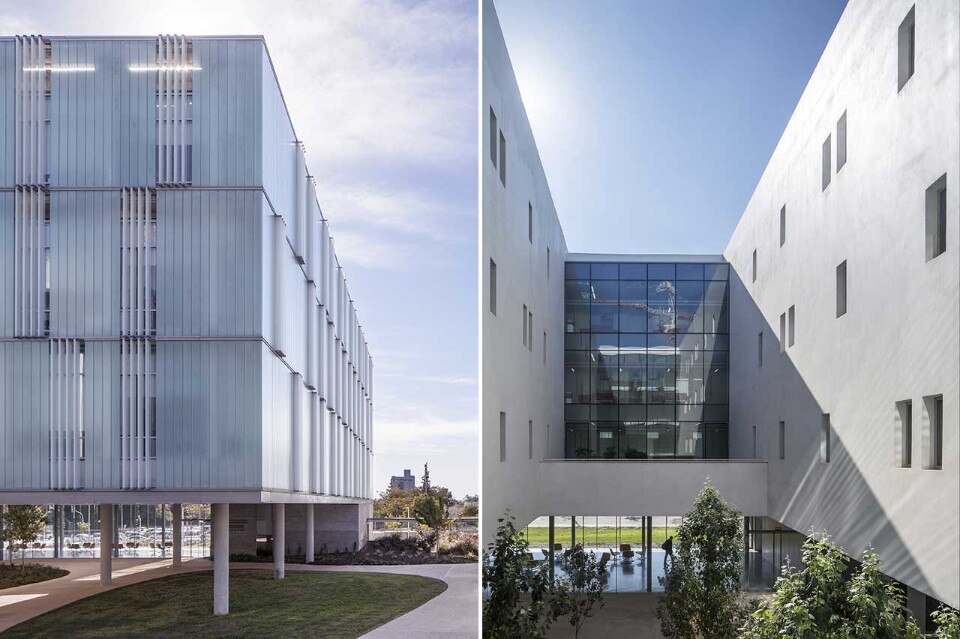

The upper floors are organized around a square space that forms an elevated open-air atrium. Their design is modular and flexible so as to accommodate programmatic changes in terms of laboratory type and size. The laboratories and offices are located at the building’s periphery, while the social spaces with their glass facades and the auxiliary rooms with their plastered walls face the atrium and have views upon the garden.

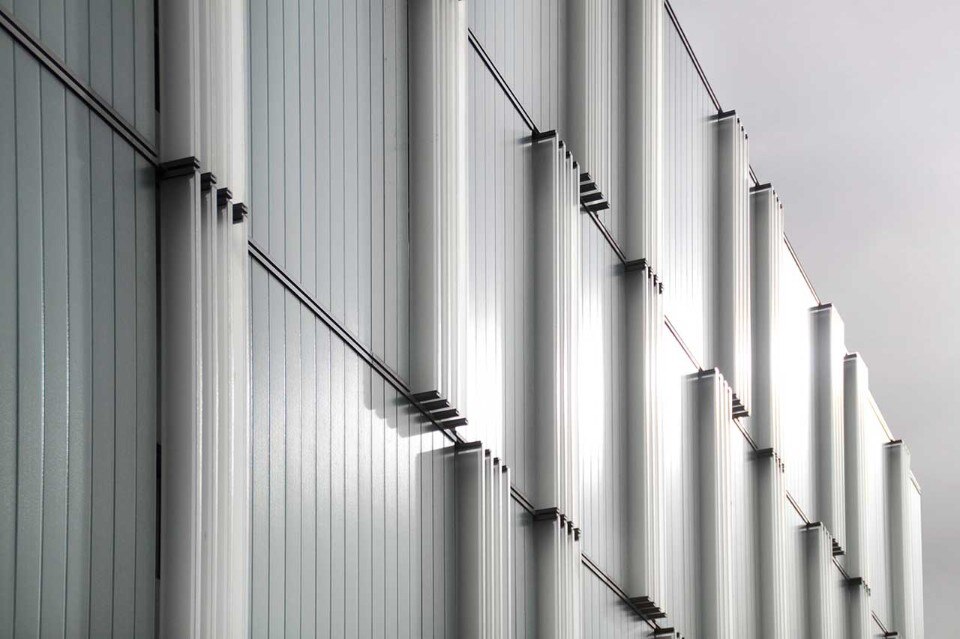

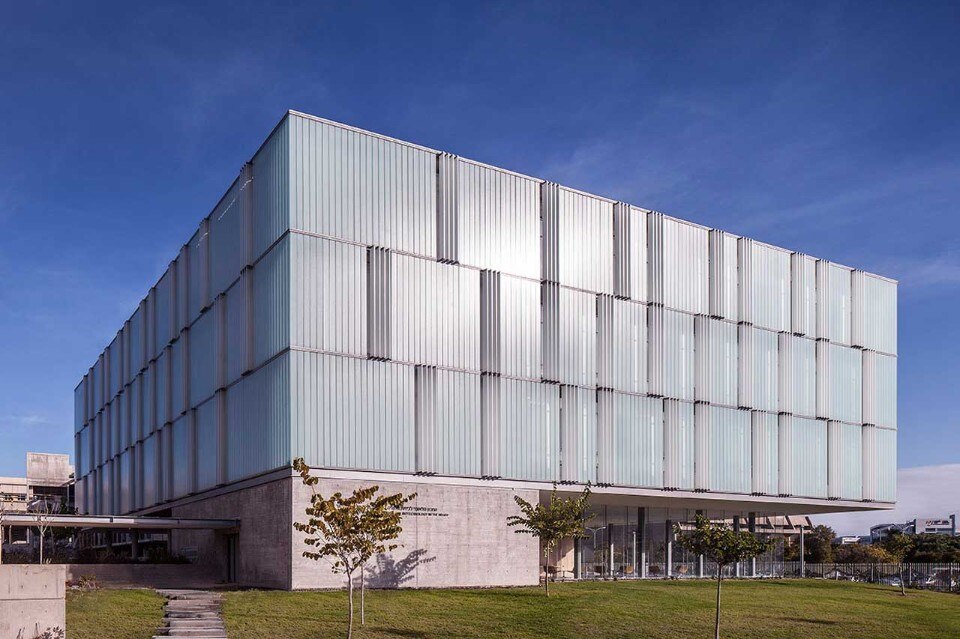

A double skin system serves as this section’s envelope, enabling the inner spaces to receive their appropriate exposure to sunlight. This facade consists of an internal glazed curtain wall and an external layer of green u glass, which is perforated by vertical openings of acid u glass louvers that expose the building’s population to the landscape.


National Institute for Biotechnology in the Negev, Ben-Gurion University, Be’er Sheva, Israel
Program: university building
Architects: Chyutin Architects
Design team: Bracha Chyutin, Michael Chyutin, Ethel Rosenhek, Jacques Dahan
Laboratories interior: Moshly- Aldar Architects
Area: 6,000 sqm
Completion: 2015
