Library of Muyinga

The first library of Muyinga (Burundi) has been designed by BC architects – as part of a future inclusive school for deaf children – in locally sourced compressed earth blocks and built involving end-users.

Library of Muyinga
For the library of Muyinga BC architects was asked to scale the “Open structures” model to an architectural level.
A construction process involving end-users and second-hand economies was conceived, connected to product life cycles, water resource cycles and energy cycles. This OpenStructures architectural model was called “Case Study (CS) 1: Katanga, Congo”. It was theoretical, and fully research-based. Five years later, the library of Muyinga in Burundi is completed.
A thorough study of vernacular architectural practices in Burundi was the basis of the design of the building. Two months of fieldwork in the region and surrounding provinces gave the architects insight in the local materials, techniques and building typologies. These findings were applied, updated, reinterpreted and framed within the local know-how and traditions of Muyinga.
Library of Muyinga
BC architects, Library of Muyinga, Burundi. Photo © BC architects and studies

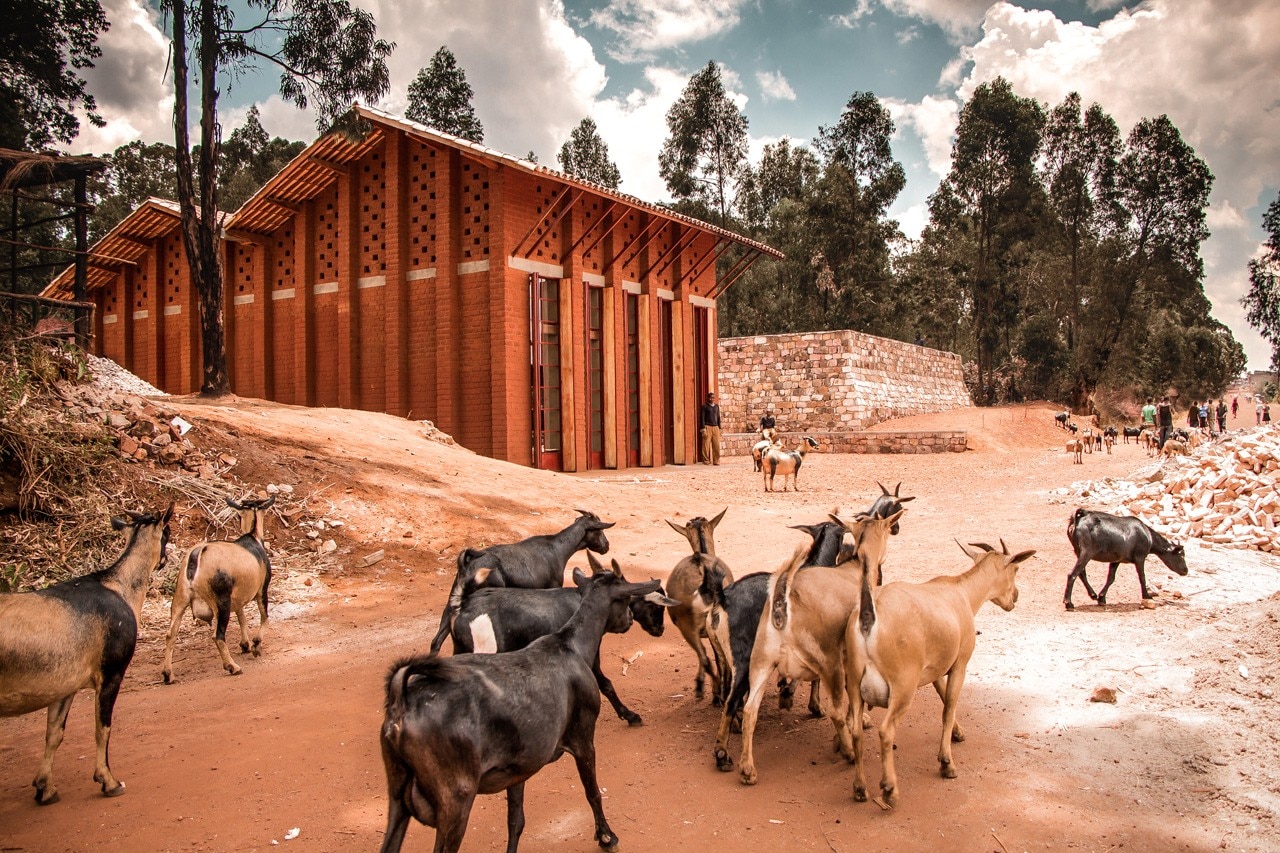

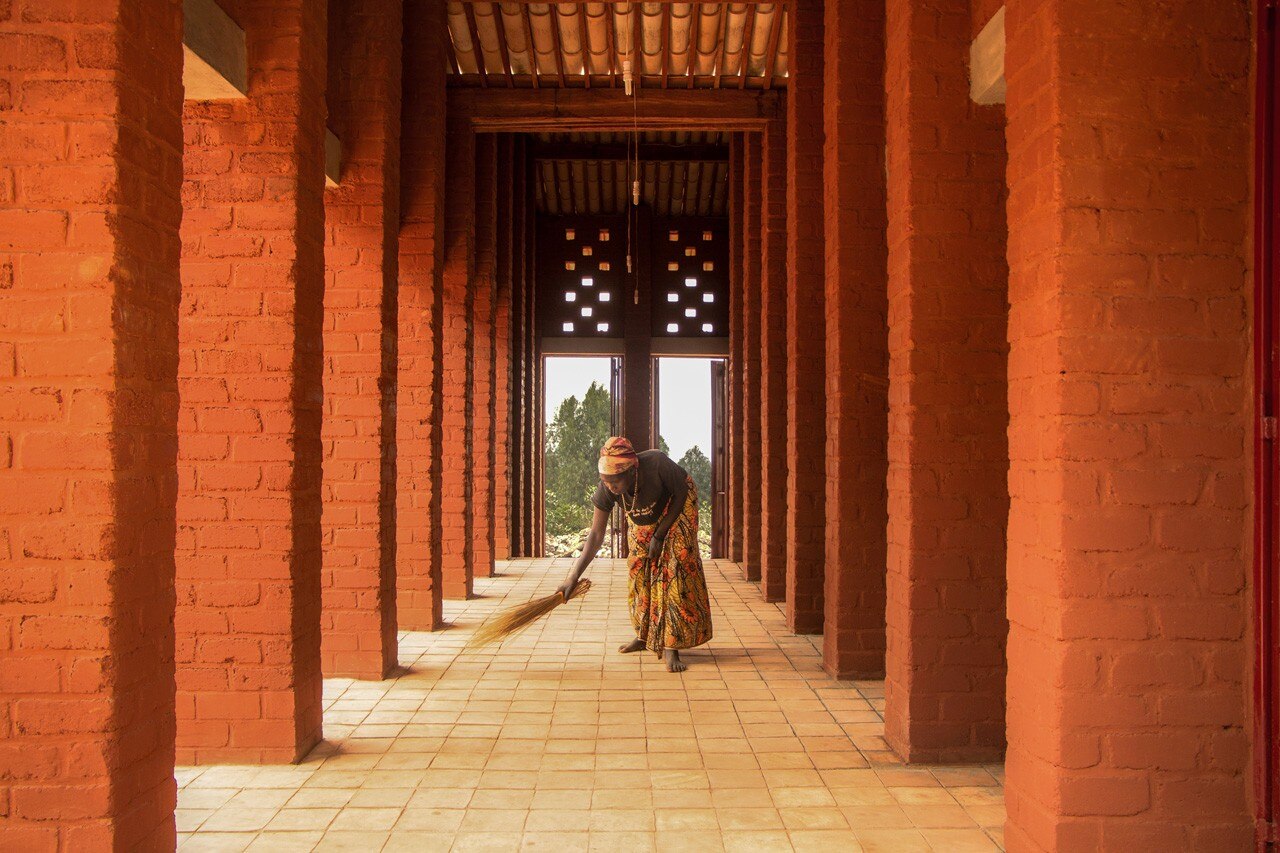

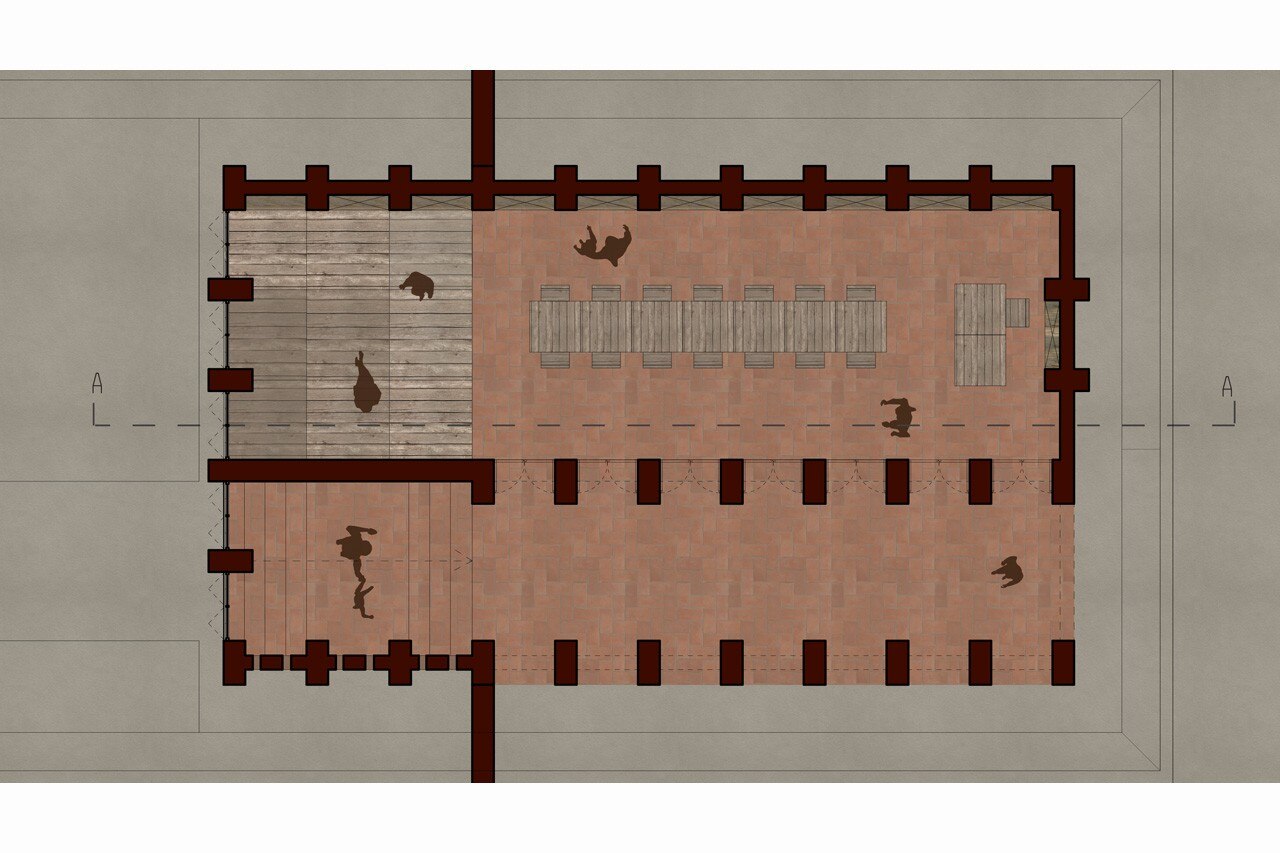

The library is organized along a longitudinal covered circulation space. This “hallway porch” is a space often encountered within the Burundian traditional housing as it provides a shelter from heavy rains and harsh sun. Life happens mostly in this hallway porch; encounters, resting, conversation, waiting – it is a truly social space, constitutive for community relations.

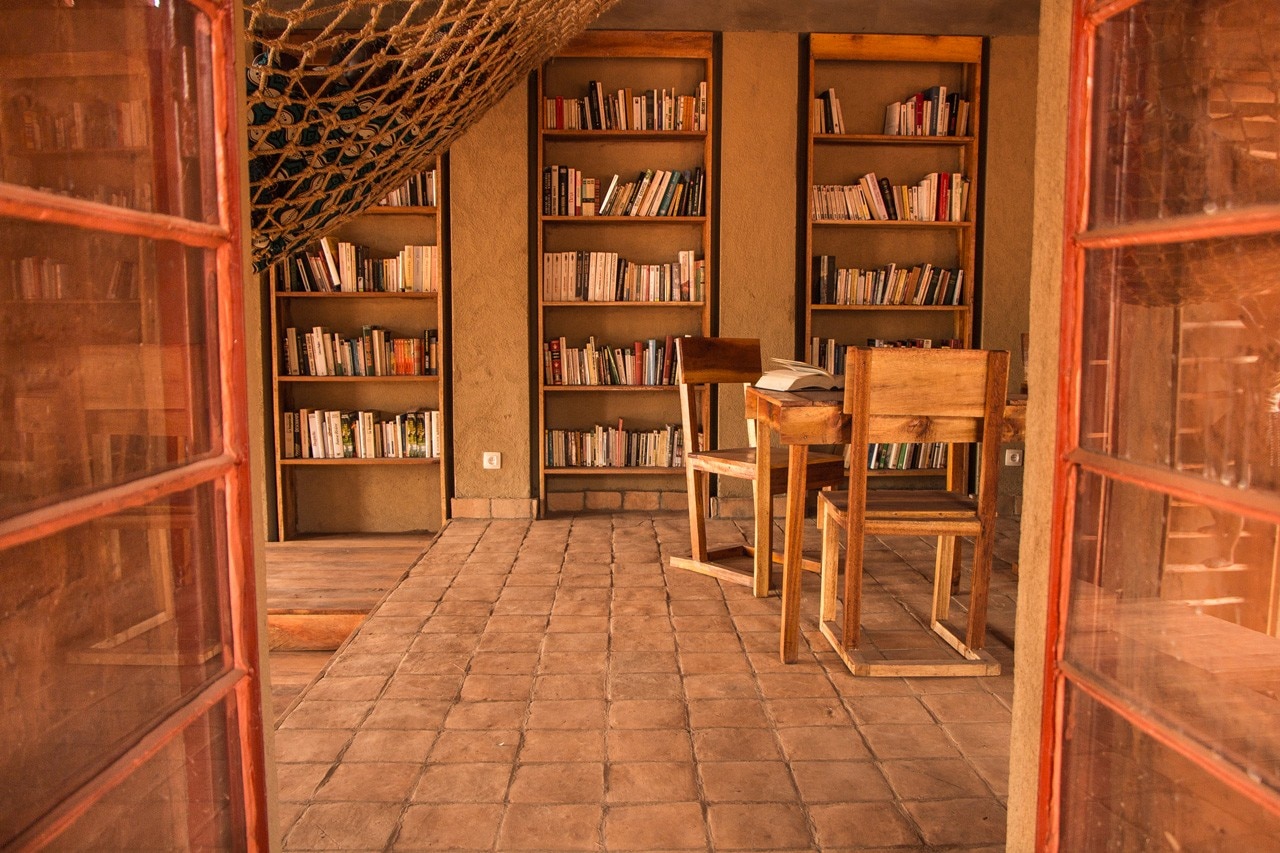

This hallway porch is deliberately oversized to become the extent of the library. Transparent doors between the columns create the interaction between inside space and porch. Fully opened, these doors make the library open up towards the adjacent square with breathtaking views over Burundi’s milles collines (“1000 hills”).

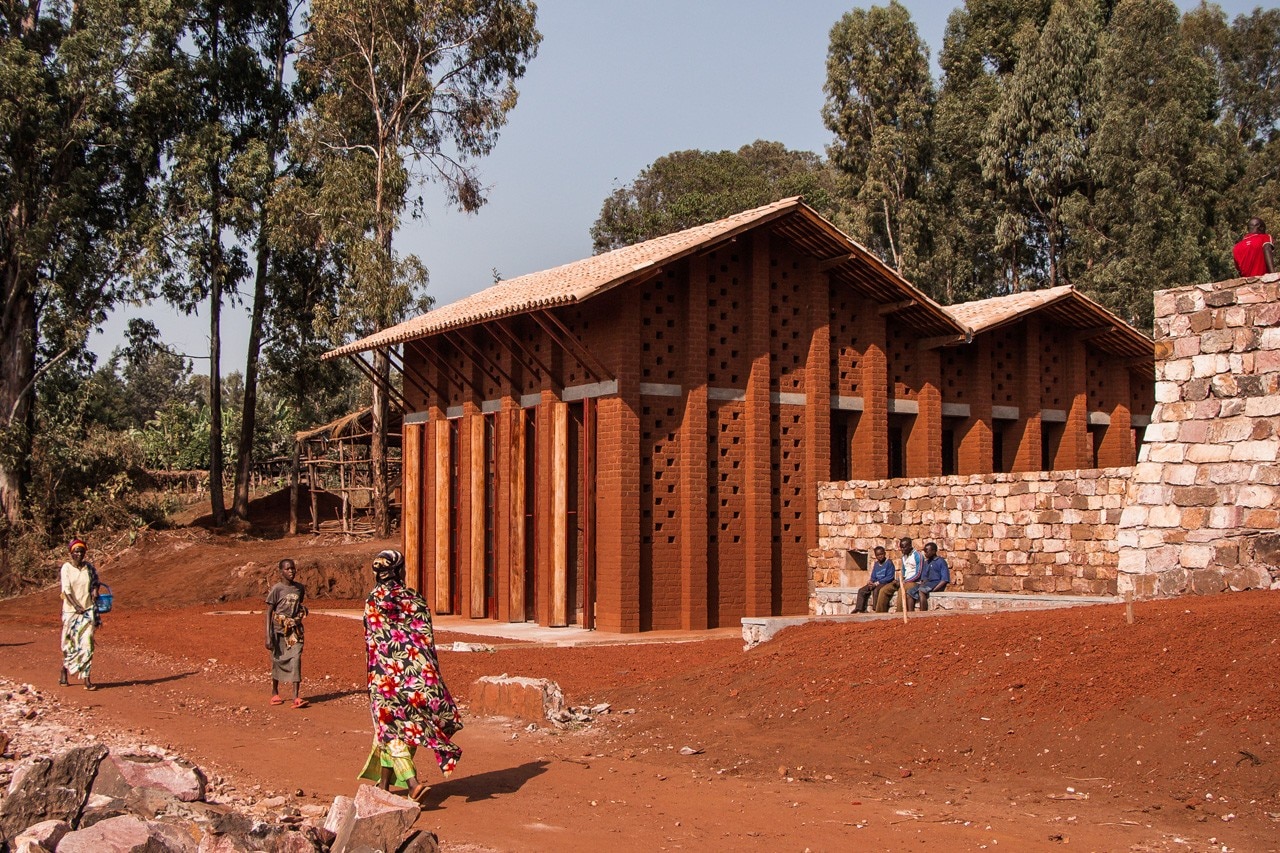

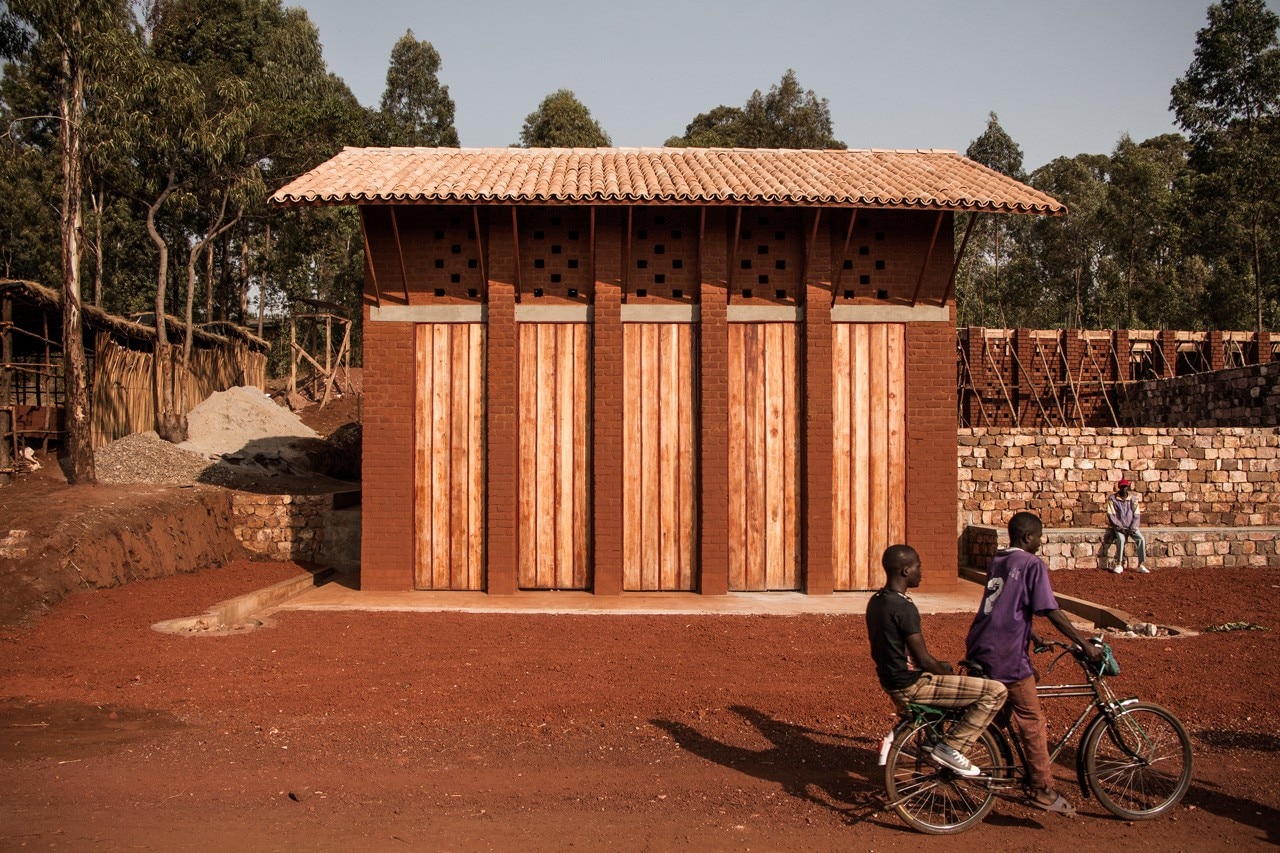

On the longitudinal end, the hallway porch flows onto the street, where blinders control access. These blinders are an important architectural element of the street facade, showing clearly when the library is open or closed. On the other end, the hallway porch will continue as the main circulation and acces space fot the future school.

A very important element in Burundian (and, generally, African) architecture is the very present demarcation of property lines. It is a tradition that goes back to tribal practices of compounding family settlements. For the library of Muyinga, the compound wall was considered in a co-design process with the community and the local NGO.

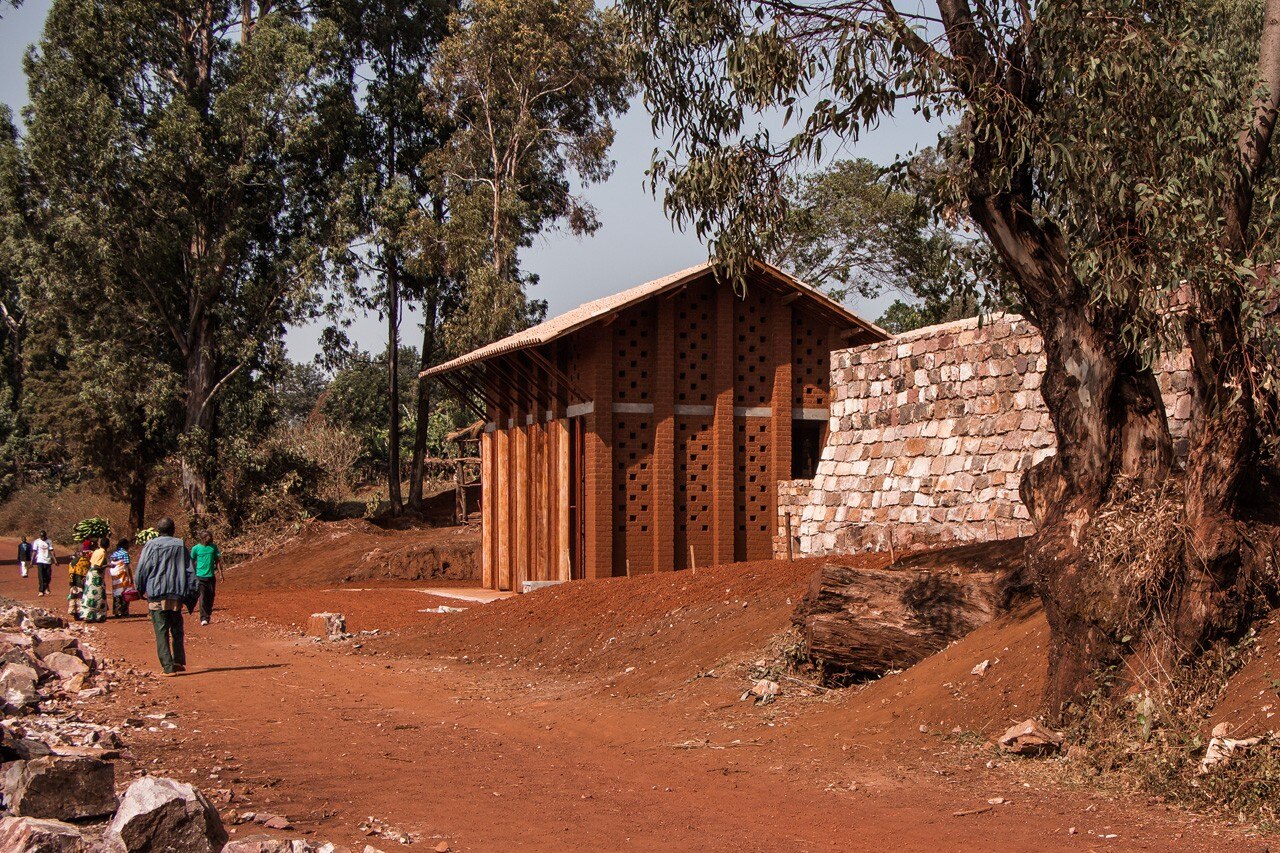

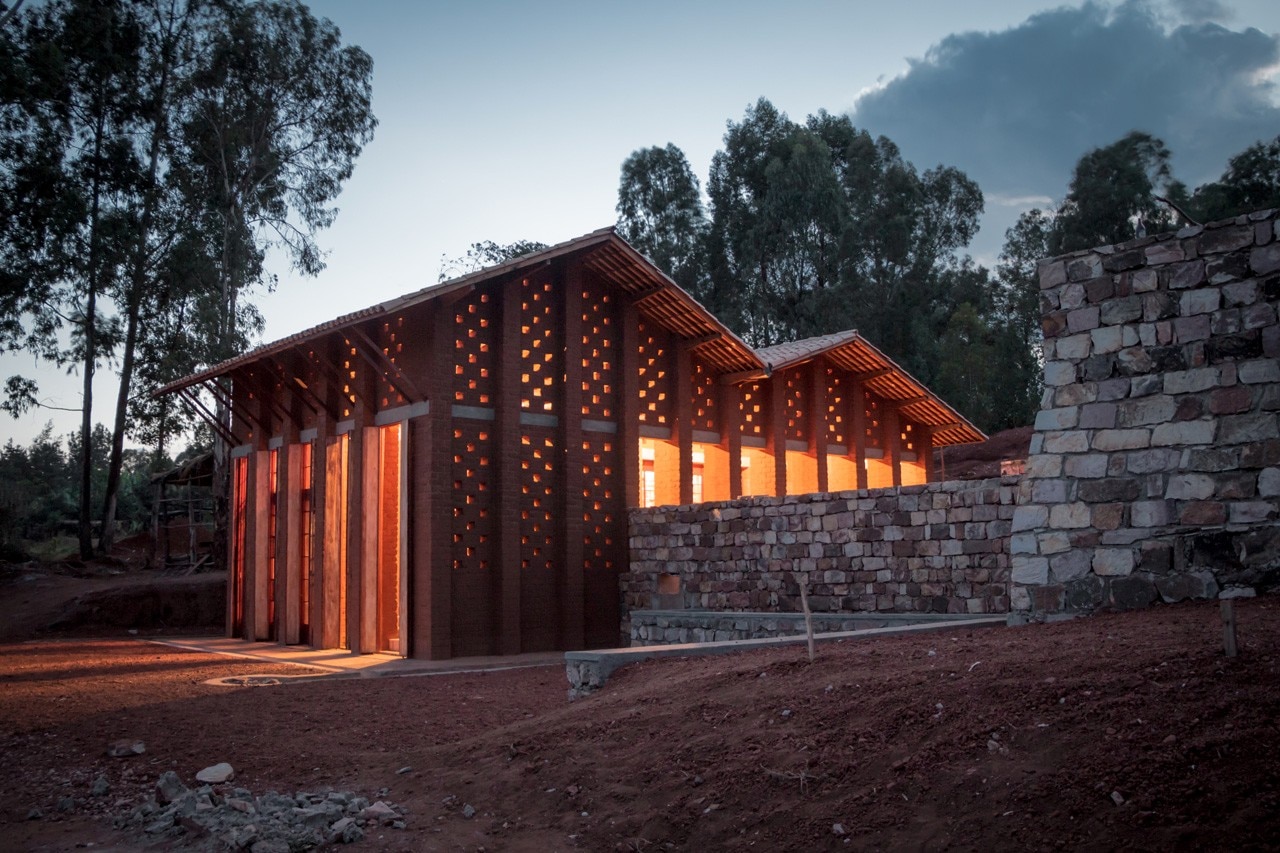

The wall facilitates the terracing of the slope as a retaining wall in dry stone technique, low on the squares and playground of the school side, high on the street side. Thus, the view towards the valley is uncompromised, while safety from the street side is guaranteed.

BC architects, Library of Muyinga, Burundi. Photo © BC architects and studies
BC architects, Library of Muyinga, Burundi. Photo © BC architects and studies

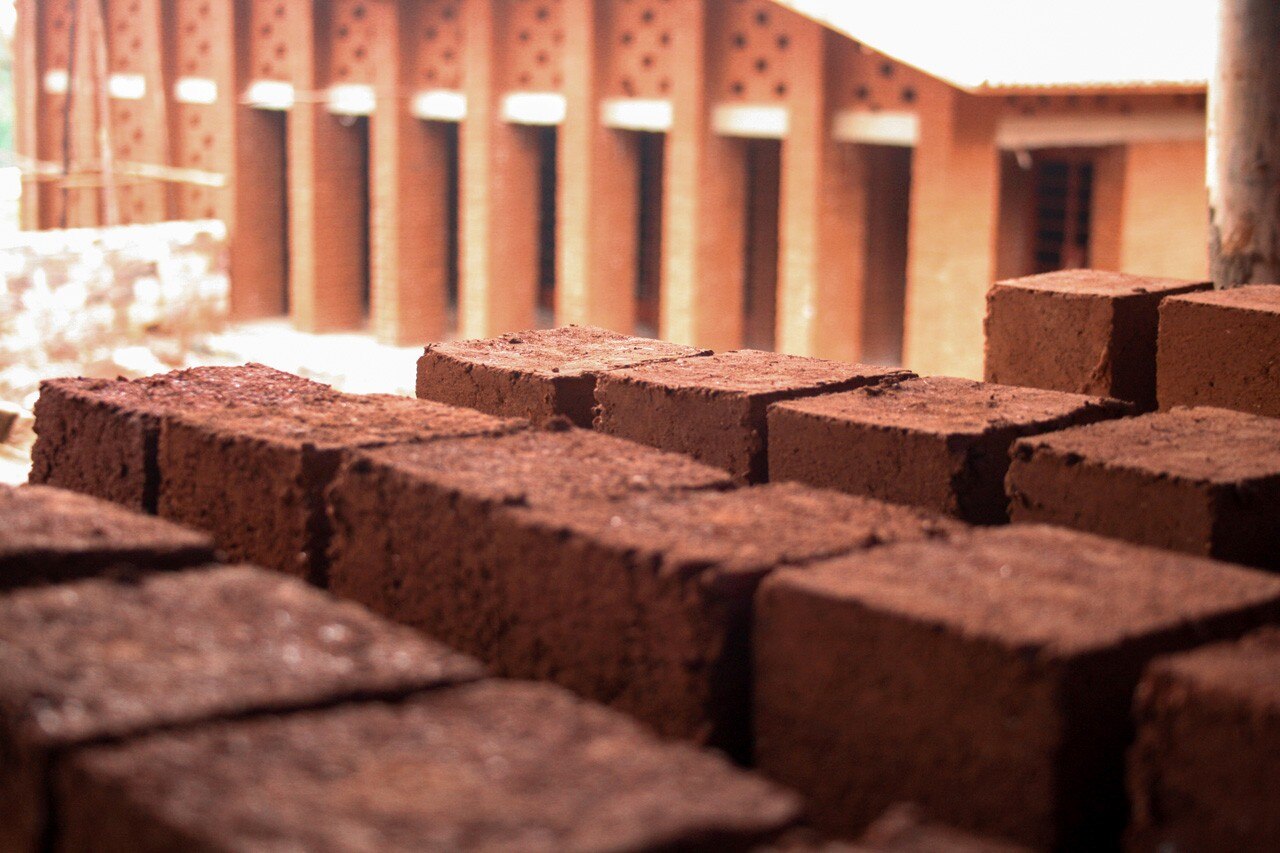

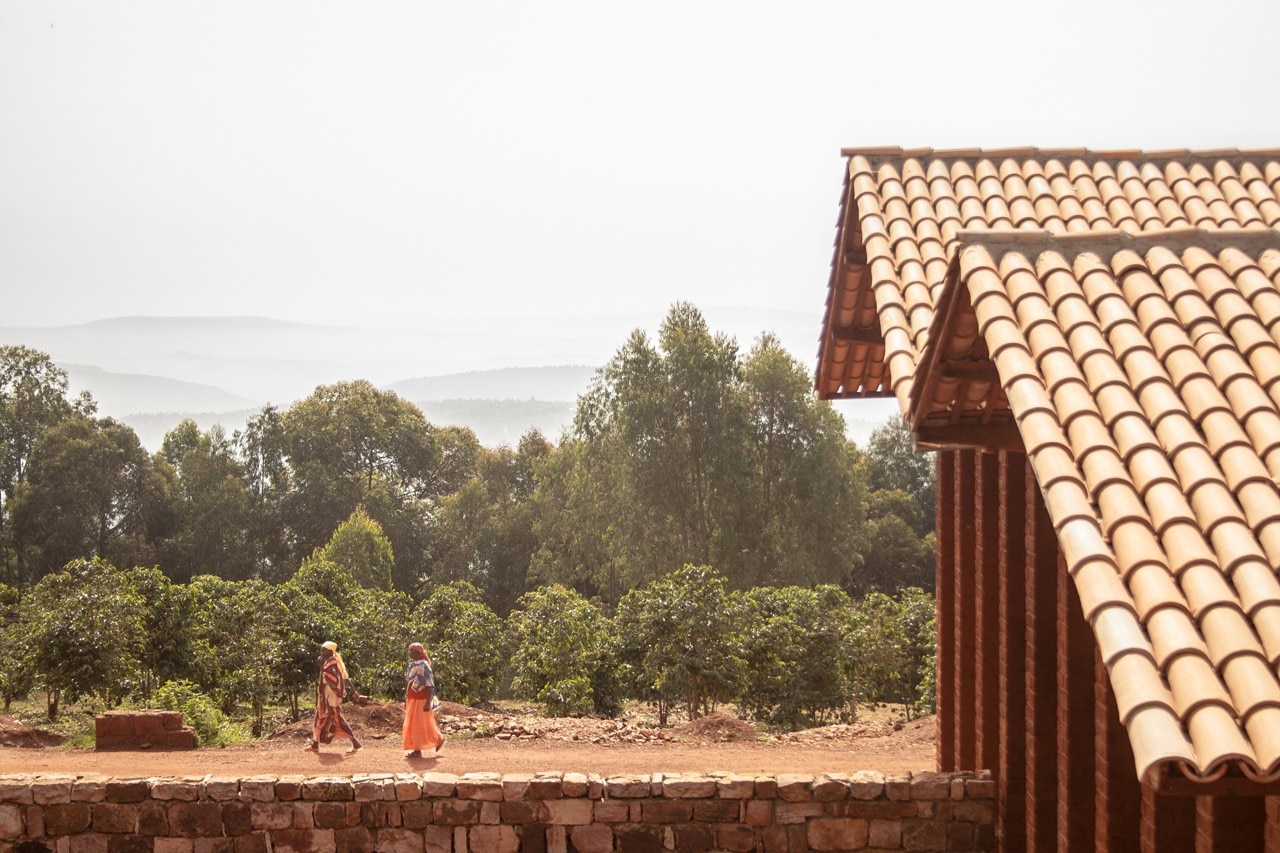

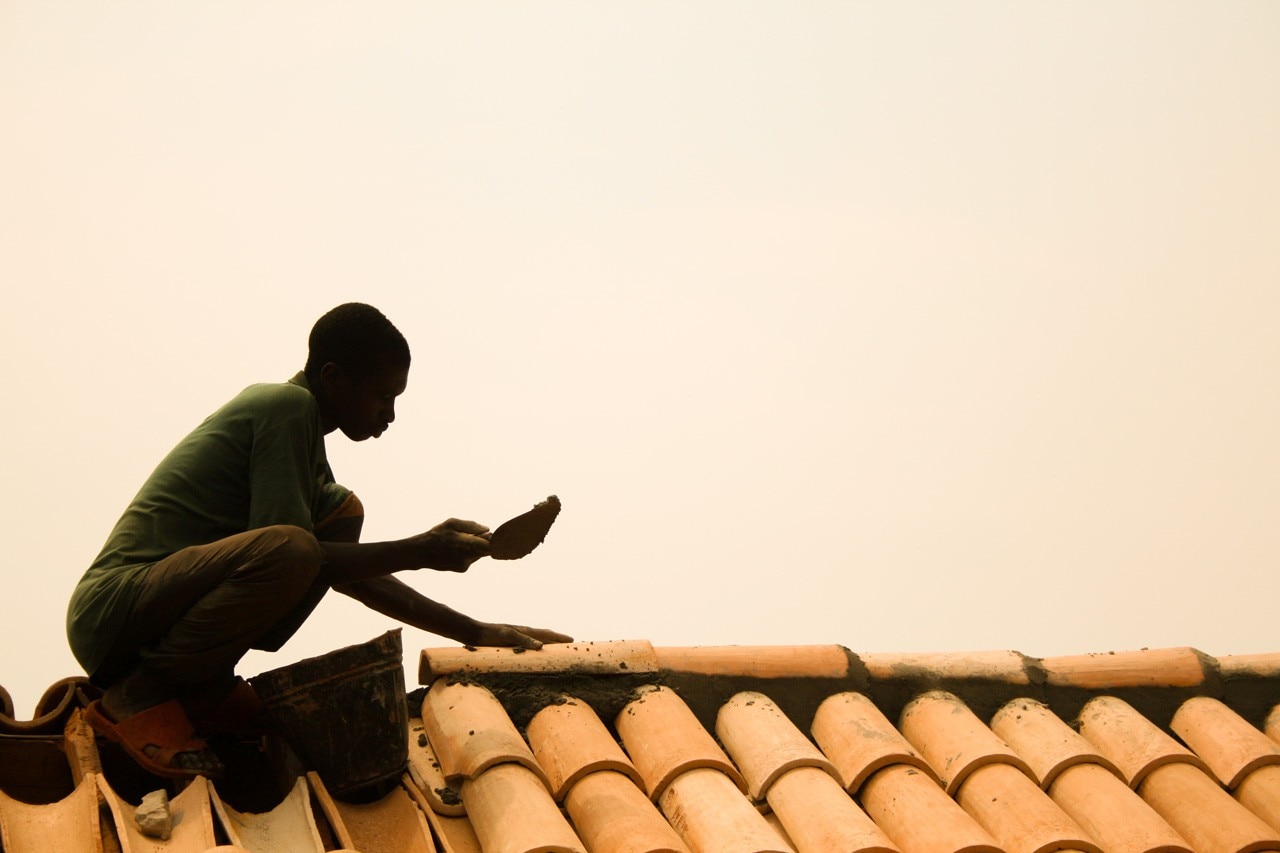

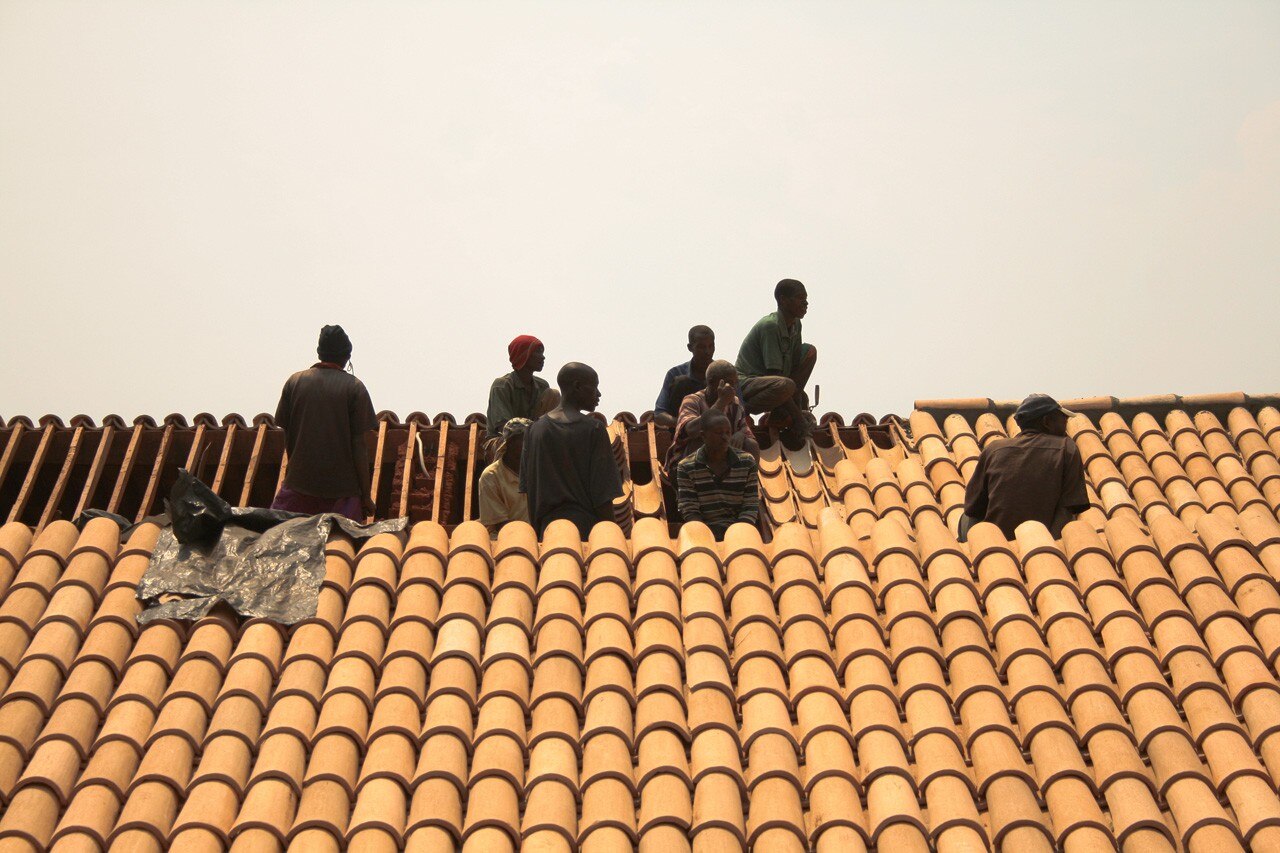

The general form of the library is the result of a structural logic, derived on one hand from the material choice (Compressed Earth Blocks masonry and baked clay roof tiles). The locally produced roof tiles were considerably more heavy than imported currogated iron sheets. This inspired the structural system of closely spaced columns at 1m30 intervals, which also act as buttresses for the high walls of the library. This rhytmic repetition of columns is a recognizable feature of the building, on the outside as well as on the inside.

The roof has a slope of 35% with an overhang to protect the unbaked CEB blocks, and contributes to the architecture of the library.

BC architects, Library of Muyinga, Burundi. Photo © BC architects and studies
BC architects, Library of Muyinga, Burundi. Photo © BC architects and studies

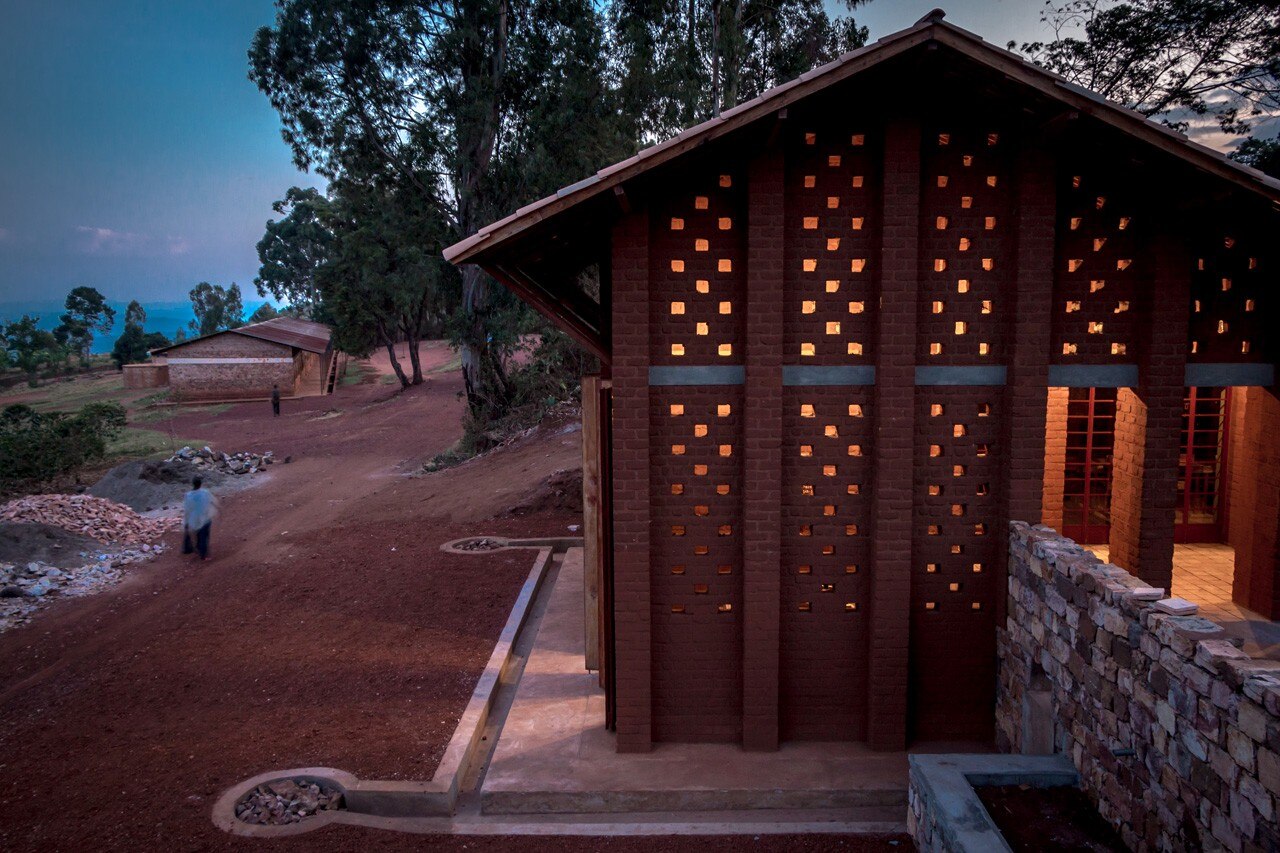

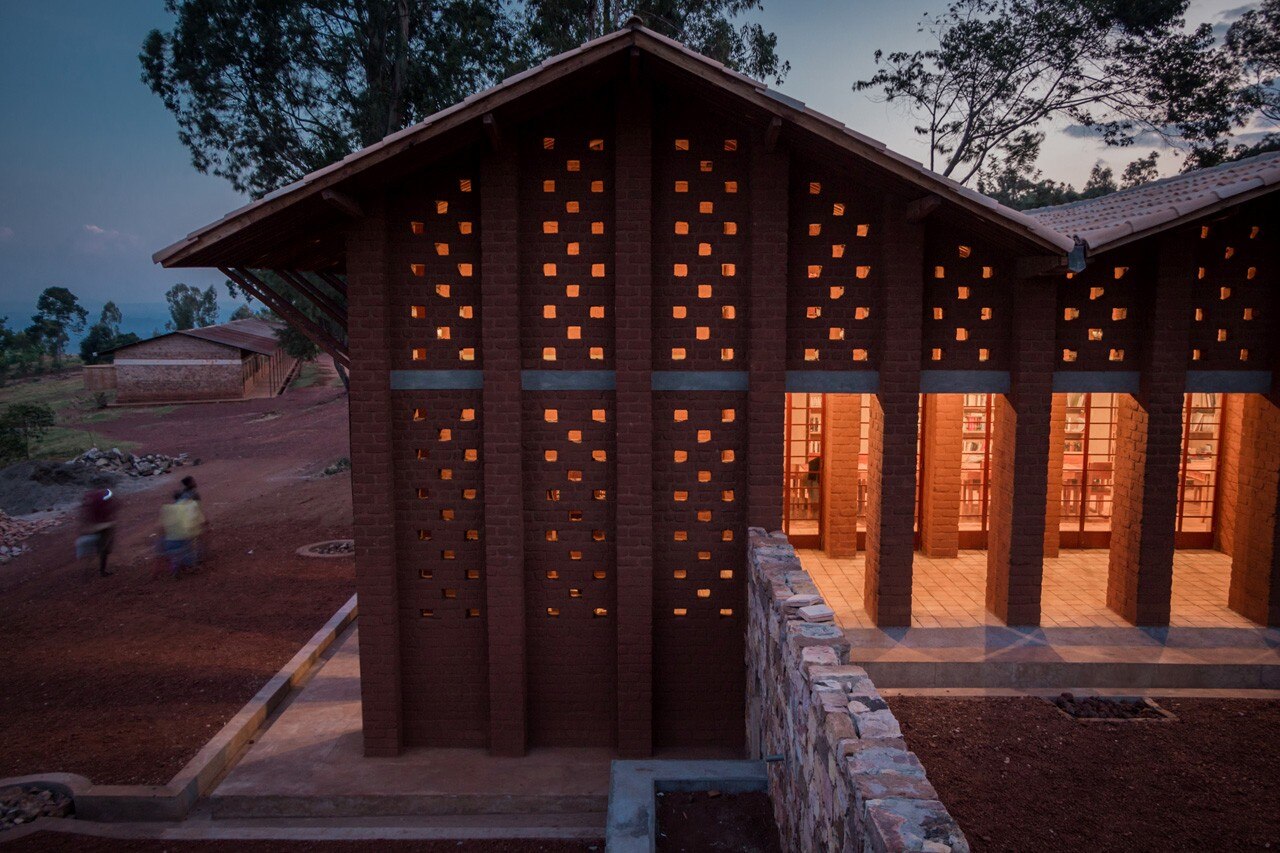

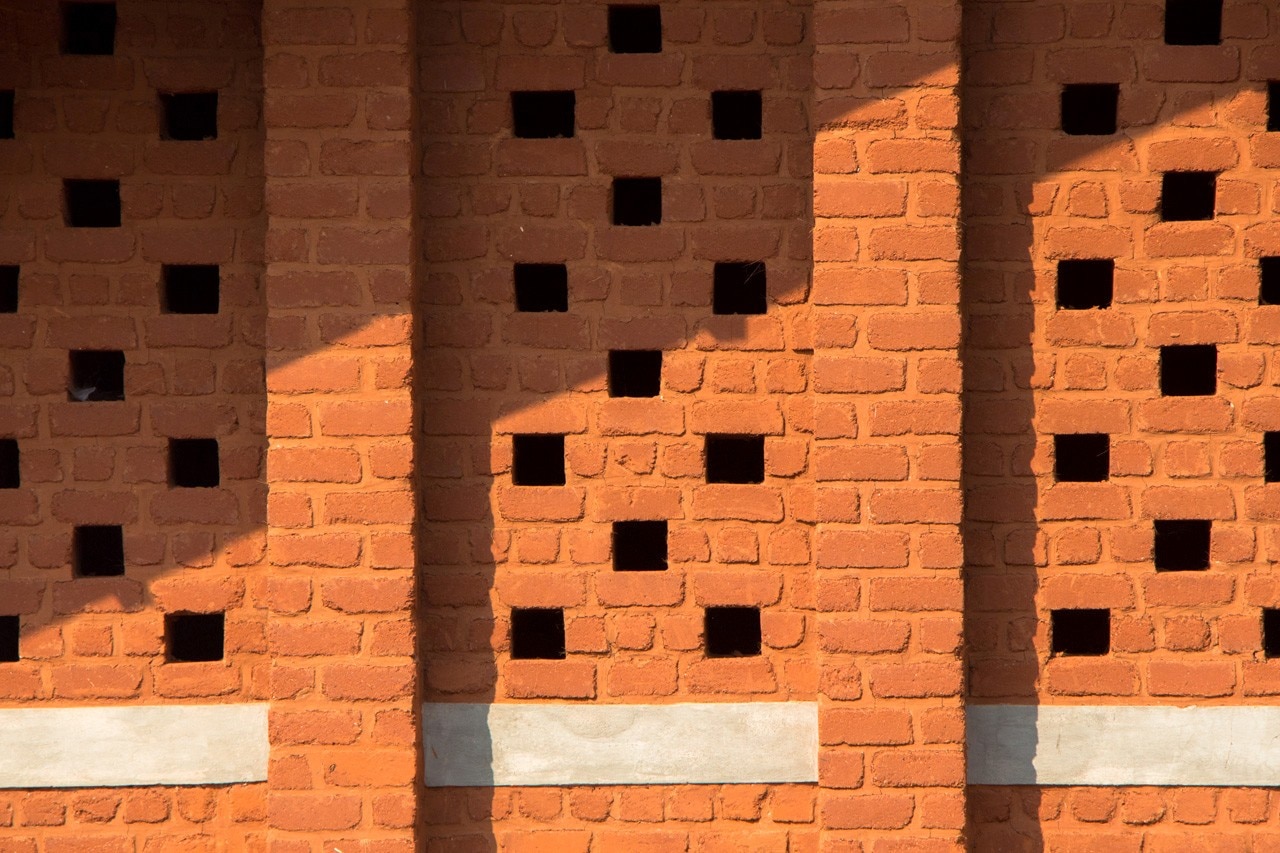

Climatic considerations inspired the volume and facade: a high interior with continuous cross-ventilation helps to guide the humid and hot air away. Hence, the facade is perforated according to the rhythm of the Compressed Earth Blocks (CEB) masonry, giving the library its luminous sight in the evening.

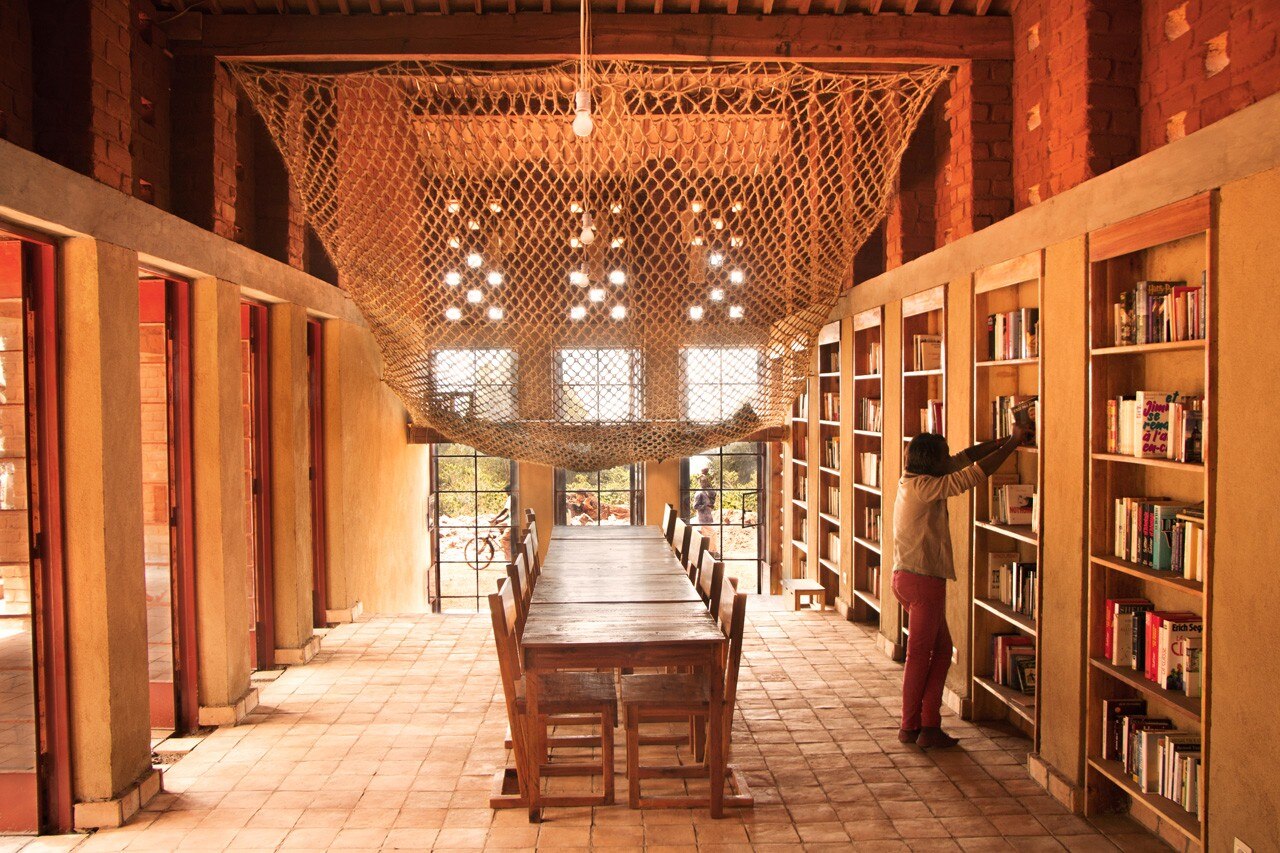

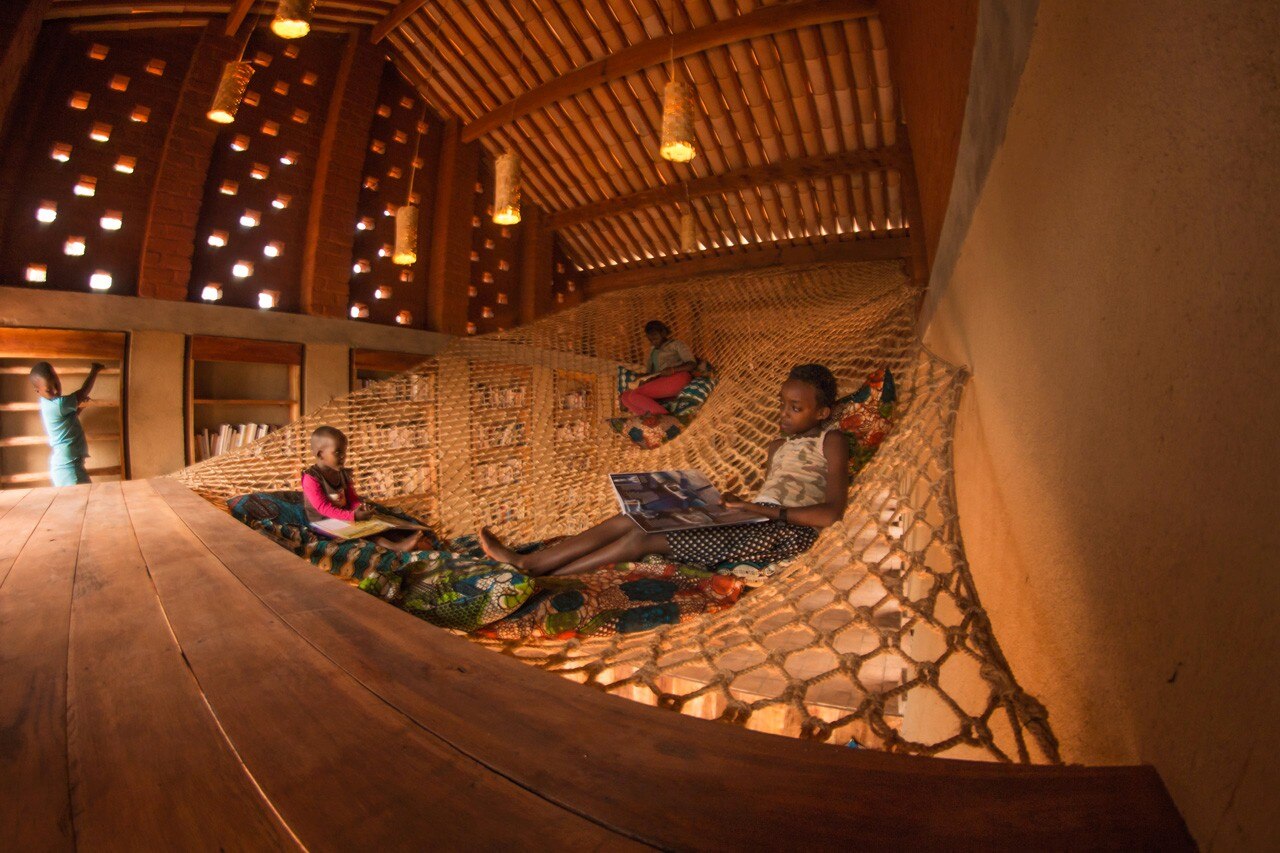

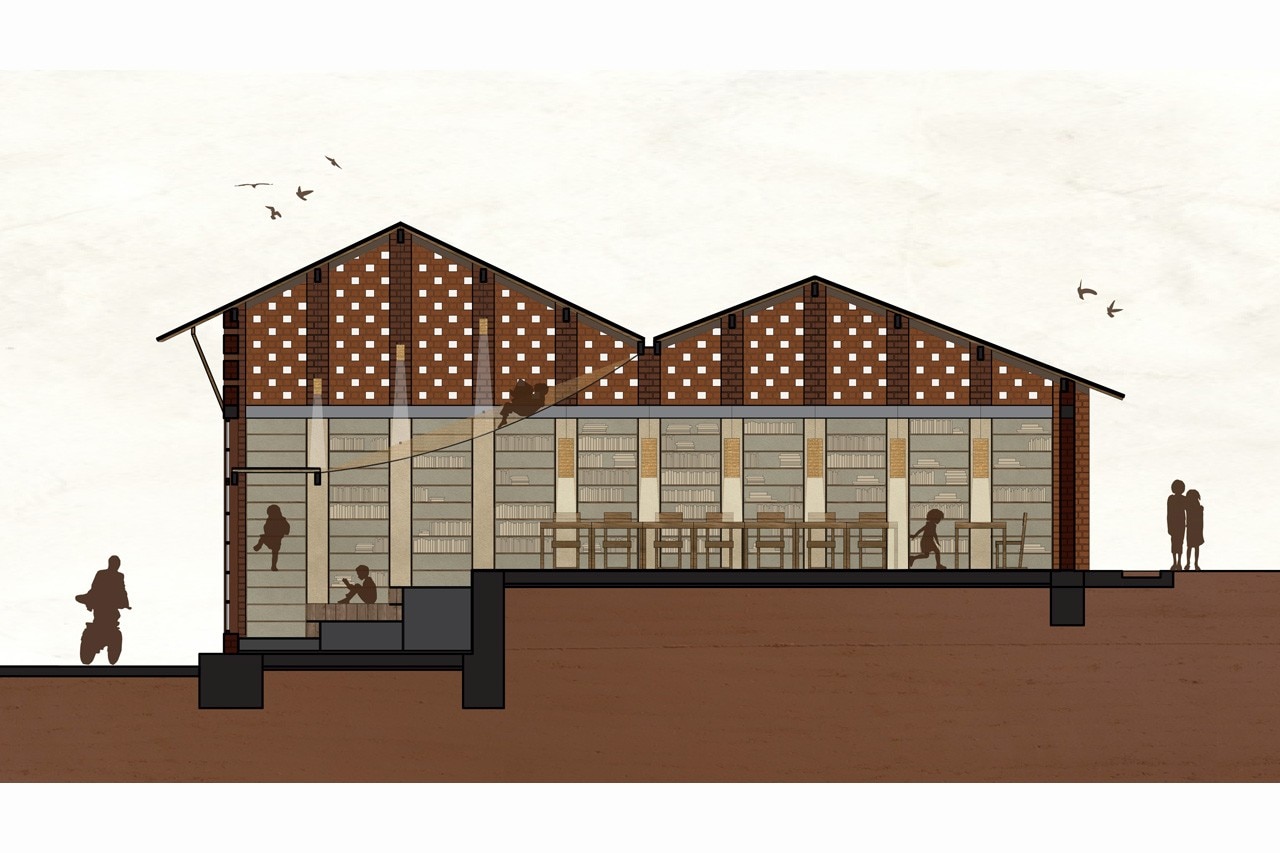

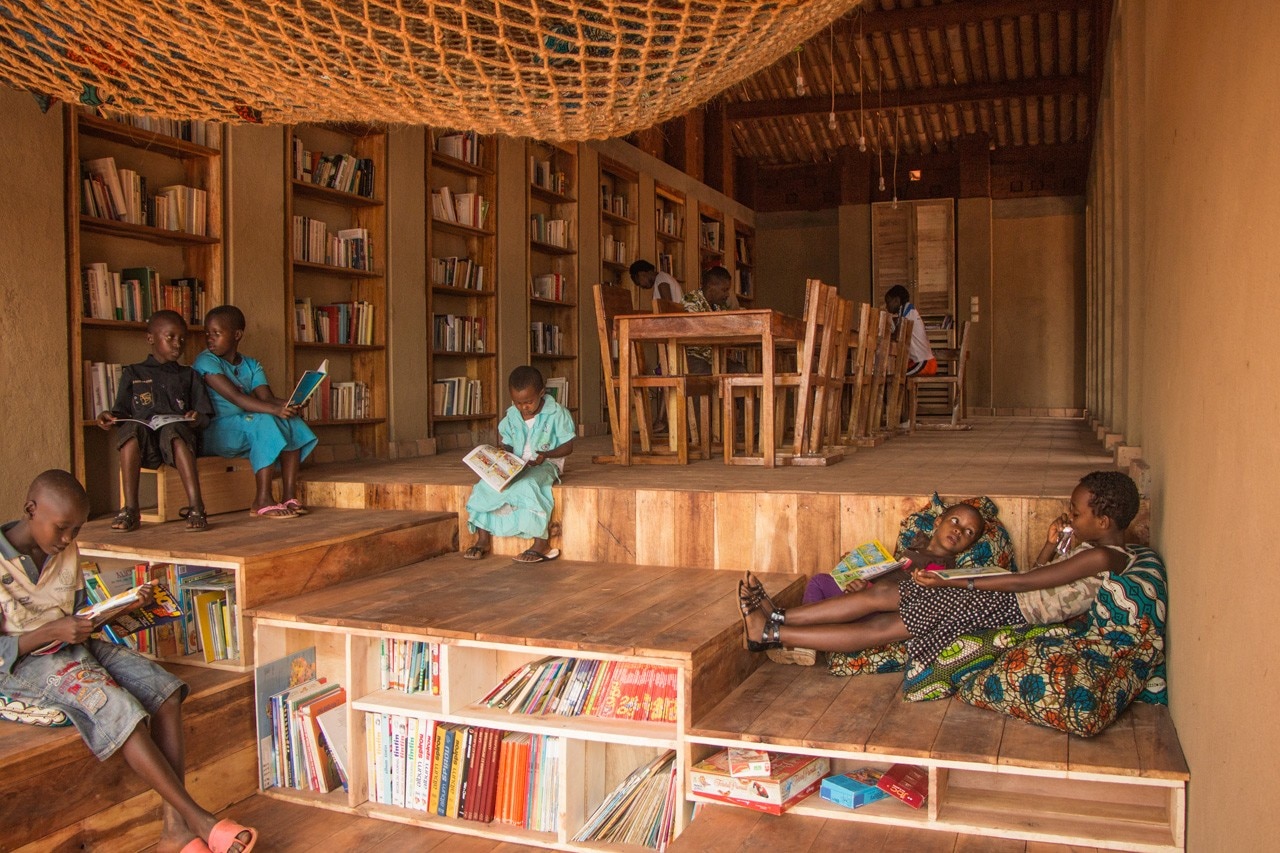

The double room height at the street side gave the possibility to create a special space for the smallest of the library readers. This children’s space consist of a wooden sitting corner on the ground floor, which might facilitate cosy class readings. It is topped by an enormous hammock of sisal rope as a mezzanine, in which the children can dream away with the books that they are reading.

The future school will continue to swing intelligently through the landscape of the site, creating playgrounds and courtyards to accomodate existing slopes and trees. In the meanwhile, the library will work as an autonomous building with a finished design.


Library for the community of Muyinga, Burundi
Program: library
Architects: BC architects
Client: ODEDIM
Local material consultancy: BC studies
Community participation and organisation: BC studies and ODEDIM Muyinga
Cooperation: ODEDIM Muyinga NGO, Satimo vzw, Sint-Lucas Architecture University, Sarolta Hüttl, Sebastiaan De Beir, Hanne Eckelmans
Financial support: Satimo vzw, Rotary Aalst, Zonta Brugge, Province of West-Flanders
Budget: 40,000 €
Area: 140 sqm
Completion: 2014
